DE1docu-48 SET

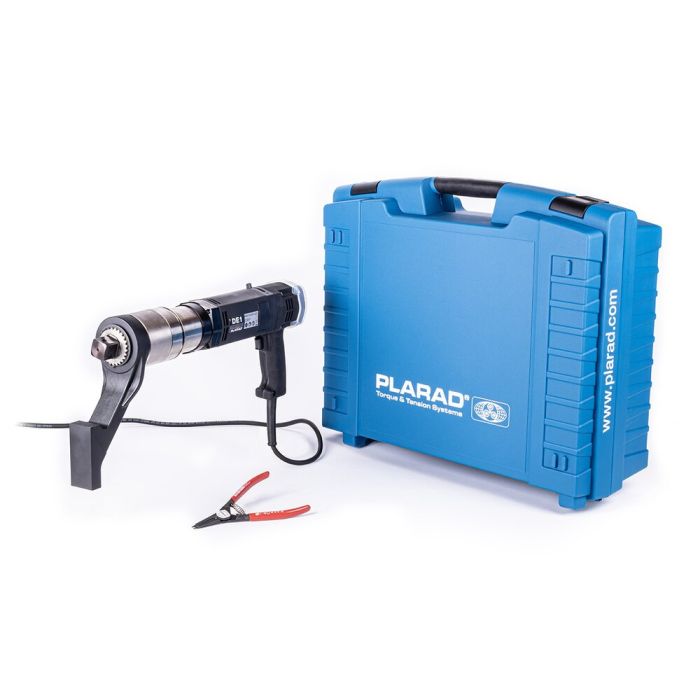

Electric Torque Wrench, 700-4.800 Nm, 516-3.540 ft.lbs, 1.1/2''-Square, AC230V, 50-60Hz, including Reaction Arm, Case and Assembly Kit
Article number
78017S
Availability:
PLARAD®- DE1docu-48
Electric nutrunner incl. reaction arm
incl. documentation of bolting cases via WLAN
Torque: 700 to 4.800 Nm
Rotation speed: 4,6 rpm
Weight: 9 kg
(without reaction arm)
Motor drive: 1.450 Watt
Voltage: 230V / 50/60Hz
Square drive: 1"
Adjustable for:
- torque
Electric nutrunner incl. reaction arm
incl. documentation of bolting cases via WLAN
Torque: 700 to 4.800 Nm
Rotation speed: 4,6 rpm
Weight: 9 kg
(without reaction arm)
Motor drive: 1.450 Watt
Voltage: 230V / 50/60Hz
Square drive: 1"
Adjustable for:
- torque
| Torque min. | 700 Nm | |
|---|---|---|
| Torque max. | 4.800 Nm | |
| Torque min. | 516 ft.lbs | |
| Torque max. | 3.540 ft.lbs | |
| Square | 1.1/2" | |
| Mains Frequency | 50 Hz | |
| Voltage | 230 V | |
| Number of Teeth (Z) | 45 Z | |
| Length (L1) | 497,00 mm | |
| Length (L2) | 160,00 mm | |
| Length (L3) | 83,50 mm | |
| Height (H1) | 192,00 mm | |
| Gear Ø (D1) | 86,00 mm | |
| Output speed G1 | 4,60 UpM | |
| Set Contents | ||
| Square Drive Socket | not included | |
| Reaction Arm | inklusive (No. 80577) | |
| Case | included (No. 18154) | |
| Assembly-Kit | included (No. 79680) | |
| Features | incl. documentation of bolting cases via WLAN | |
