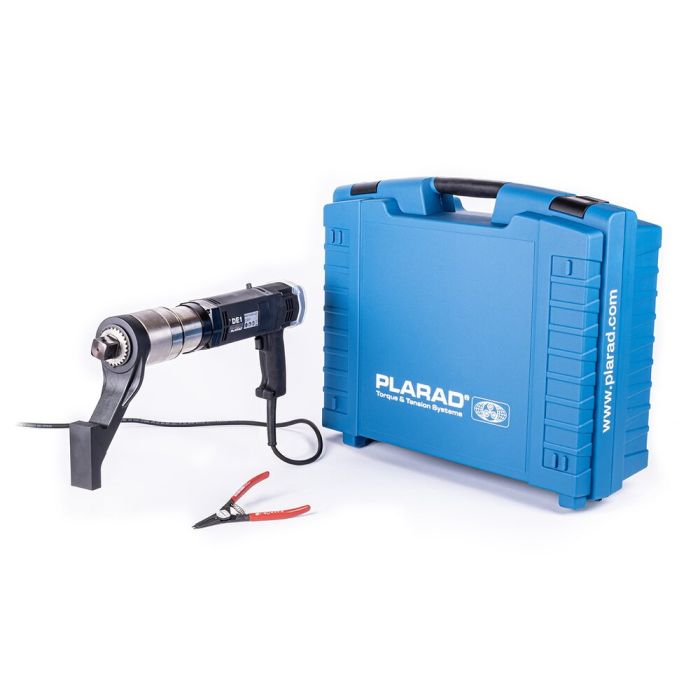

DE1docu-10 SET
Electric Torque Wrench, 150-1.000 Nm, 111-738 ft.lbs, 3/4''-Square, AC230V, 50-60Hz, including Reaction Arm, Case and Assembly Kit
Article number
78001S
Availability:
PLARAD®- DE1docu-10
Electric nutrunner incl. reaction arm
incl. documentation of bolting cases via WLAN
Torque: 150 to 1.000 Nm
Rotation speed: 19,6 rpm
Weight: 5,7 kg
(without reaction arm)
Motor drive: 1.450 Watt
Voltage: 230V / 50/60Hz
Square drive: 3/4"
Adjustable for:
- torque
Electric nutrunner incl. reaction arm
incl. documentation of bolting cases via WLAN
Torque: 150 to 1.000 Nm
Rotation speed: 19,6 rpm
Weight: 5,7 kg
(without reaction arm)
Motor drive: 1.450 Watt
Voltage: 230V / 50/60Hz
Square drive: 3/4"
Adjustable for:
- torque
| Torque min. | 150 Nm | |
|---|---|---|
| Torque max. | 1.000 Nm | |
| Torque min. | 111 ft.lbs | |
| Torque max. | 738 ft.lbs | |
| Square | 3/4" | |
| Mains Frequency | 50 Hz | |
| Voltage | 230 V | |
| Number of Teeth (Z) | 26 Z | |
| Length (L1) | 425,00 mm | |
| Length (L2) | 145,50 mm | |
| Length (L3) | 60,50 mm | |
| Height (H1) | 192,00 mm | |
| Gear Ø (D1) | 68,50 mm | |
| Output speed G1 | 19,60 UpM | |
| Set Contents | ||
| Square Drive Socket | not included | |
| Reaction Arm | inklusive (No. 75446) | |
| Case | included (No. 18154) | |
| Assembly-Kit | included (No. 79679) | |
| Features | incl. documentation of bolting cases via WLAN | |
