DE1docu-36 SET

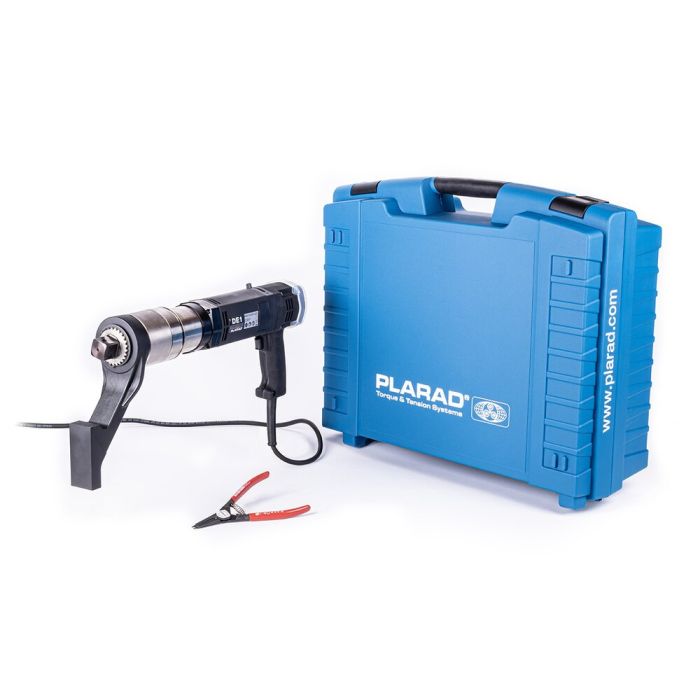

Electric Torque Wrench, 500-3.600 Nm, 369-2.655 ft.lbs, 1''-Square, AC230V, 50-60Hz, including Reaction Arm, Case and Assembly Kit
Article number
78013S
Availability:
PLARAD®- DE1docu-36
Electric nutrunner incl. reaction arm
incl. documentation of bolting cases via WLAN
Torque: 500 to 3.600 Nm
Rotation speed: 5,2 rpm
Weight: 7,2 kg
(without reaction arm)
Motor drive: 1.450 Watt
Voltage: 230V / 50/60Hz
Square drive: 1"
Adjustable for:
- torque
Electric nutrunner incl. reaction arm
incl. documentation of bolting cases via WLAN
Torque: 500 to 3.600 Nm
Rotation speed: 5,2 rpm
Weight: 7,2 kg
(without reaction arm)
Motor drive: 1.450 Watt
Voltage: 230V / 50/60Hz
Square drive: 1"
Adjustable for:
- torque
| Torque min. | 500 Nm | |
|---|---|---|
| Torque max. | 3.600 Nm | |
| Torque min. | 369 ft.lbs | |
| Torque max. | 2.655 ft.lbs | |
| Square | 1" | |
| Mains Frequency | 50 Hz | |
| Voltage | 230 V | |
| Number of Teeth (Z) | 26 Z | |
| Length (L1) | 465,00 mm | |
| Length (L2) | 140,00 mm | |
| Length (L3) | 61,50 mm | |
| Height (H1) | 192,00 mm | |
| Gear Ø (D1) | 80,00 mm | |
| Output speed G1 | 5,20 UpM | |
| Set Contents | ||
| Square Drive Socket | not included | |
| Reaction Arm | inklusive (No. 71707) | |
| Case | included (No. 18154) | |
| Assembly-Kit | included (No. 79679) | |
| Features | incl. documentation of bolting cases via WLAN | |
