DA2power-36 Safety-BM 2.0
Battery Torque Wrench, 380-3.600 Nm, 280-2.655 ft.lbs, 1''-Square, Two-hand operation, without Reaction Arm, Case, Battery Pack, Battery Charger and Assembly Kit
Article number
83528
Availability:

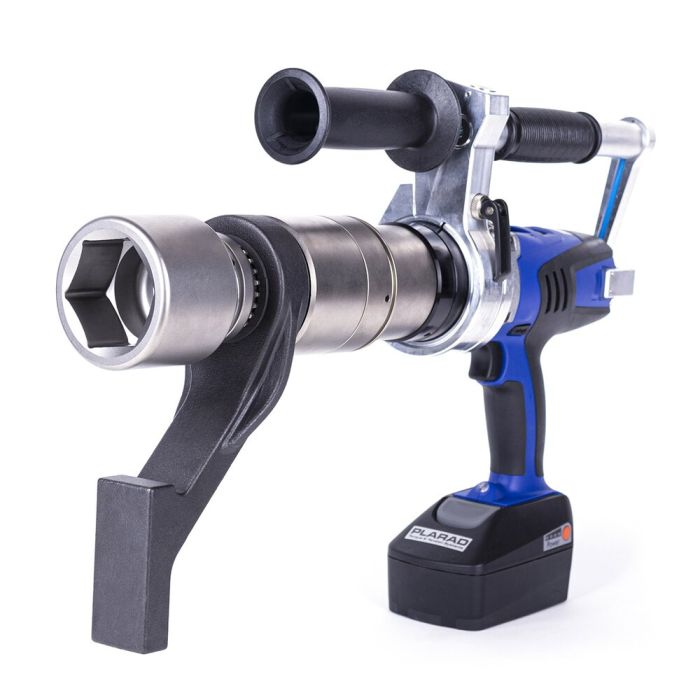

PLARAD®-DA2power-36 Safety
Battery Torque Wrench
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
Accessories:
without any accessories
Torque: 380 to 3.600 Nm
280 to 2.655 ft.lbs
Rotation speed: 1,8 UpM to 15,3 UpM
Weight: 8,38 kg
Square drive: 1"
Battery Torque Wrench
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
Accessories:
without any accessories
Torque: 380 to 3.600 Nm
280 to 2.655 ft.lbs
Rotation speed: 1,8 UpM to 15,3 UpM
Weight: 8,38 kg
Square drive: 1"
| Torque min. | 380 Nm |
|---|---|
| Torque max. | 3.600 Nm |
| Torque min. | 280 ft.lbs |
| Torque max. | 2.655 ft.lbs |
| Square | 1" |
| Number of Teeth (Z) | 26 Z |
| Length (L1) | 423,00 mm |
| Length (L2) | 184,50 mm |
| Length (L3) | 64,50 mm |
| Length (L4) | 27,50 mm |
| Height (H1) | 158,00 mm |
| Gear Ø (D1) | 80,00 mm |
| Output speed G1 | 1,8 UpM |
| Output speed G2 | 3,3 UpM |
| Output speed G3 | 7,8 UpM |
| Output speed G4 | 15,3 UpM |
| Features | 60 torque regulating steps and 4 additional loosening steps, capacity control for accumulator, automatic release, actuated by safety function, fully automatic locking device |
