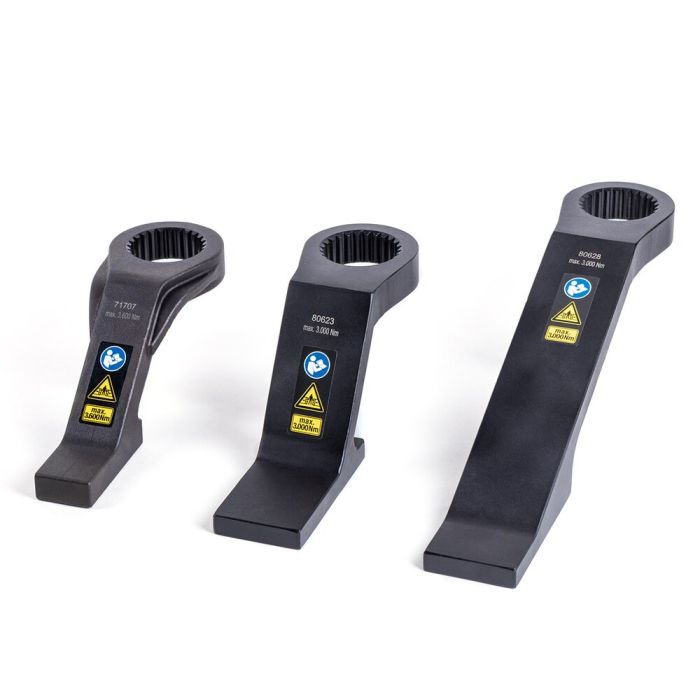

Reaction Arm RA B DR Z 26
Up to 3.600 Nm, suitable for DA/DE/DP - 30/36
Article number
71707
Availability:
PLARAD® - Standard reaction arm
DA2/DE/DP1 30-36
Steel
Max. capacity: up to 3.600 Nm
Length: 190 mm
Height: 100 mm
Width reaction block: 90 mm
Weight: 2,14 kg
DA2/DE/DP1 30-36
Steel
Max. capacity: up to 3.600 Nm
Length: 190 mm
Height: 100 mm
Width reaction block: 90 mm
Weight: 2,14 kg
| Torque max. | 3.600 Nm |
|---|---|
| Variation | Basic |
| Product Group | DA/DE/DP |
| Product Assignment | DA/DE/DP1-2 05/10/20/30/36 |
| Gerätezugehörigkeit | DA/DE/DP1-2 05/10/20/30/36 |
| Number of Teeth (Z) | 26 Z |
| Length (L1) | 190,00 mm |
| Length (L2) | 90,00 mm |
| Width (B) | 40,00 mm |
| Height (H1) | 100,00 mm |
| Height (H2) | 20,00 mm |
