DA2power-05 Safety-BM 2.0
Battery Torque Wrench, 130-550 Nm, 96-406 ft.lbs, 3/4''-Square, Two-hand operation, without Reaction Arm, Case, Battery Pack, Battery Charger and Assembly Kit
Article number
83526
Availability:

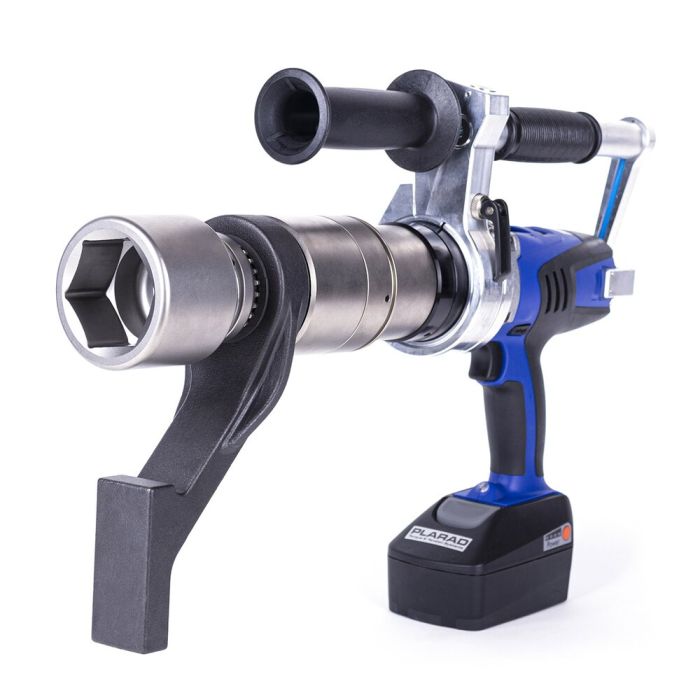

PLARAD®-DA2power-05 Safety
Battery Torque Wrench
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
Accessories:
without any accessories
Torque: 130 to 550 Nm
96 to 406 ft.lbs
Rotation speed: 8,4 UpM to 71,6 UpM
Weight: 7 kg
Square drive: 3/4"
Battery Torque Wrench
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
Accessories:
without any accessories
Torque: 130 to 550 Nm
96 to 406 ft.lbs
Rotation speed: 8,4 UpM to 71,6 UpM
Weight: 7 kg
Square drive: 3/4"
| Torque min. | 130 Nm |
|---|---|
| Torque max. | 550 Nm |
| Torque min. | 96 ft.lbs |
| Torque max. | 406 ft.lbs |
| Square | 3/4" |
| Number of Teeth (Z) | 26 Z |
| Length (L1) | 383,00 mm |
| Length (L2) | 144,50 mm |
| Length (L3) | 60,50 mm |
| Length (L4) | 26,50 mm |
| Height (H1) | 158,00 mm |
| Gear Ø (D1) | 68,50 mm |
| Output speed G1 | 8,4 UpM |
| Output speed G2 | 16,6 UpM |
| Output speed G3 | 37,0 UpM |
| Output speed G4 | 71,6 UpM |
| Features | 60 torque regulating steps and 4 additional loosening steps, capacity control for accumulator, automatic release, actuated by safety function, fully automatic locking device |
