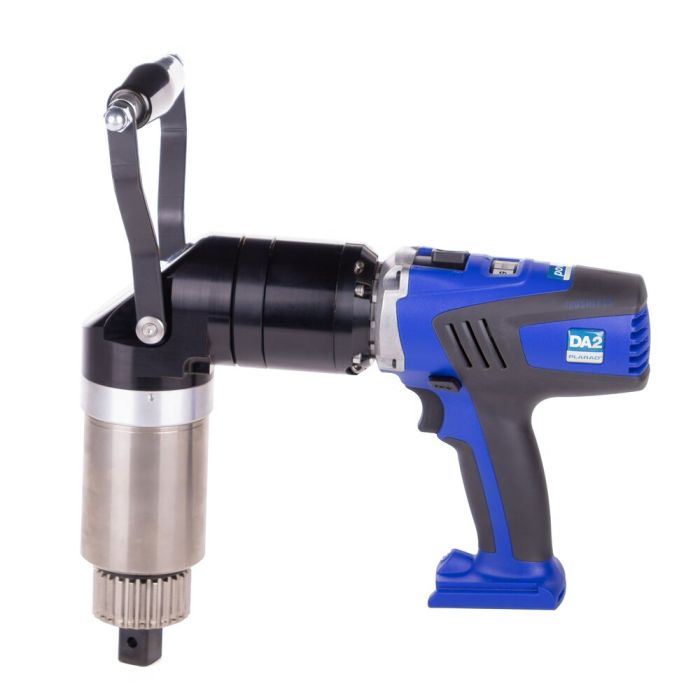

DA2power-48 W-BM
Battery Torque Wrench, Angle Version, 500-4.800 Nm, 369-3.540 ft.lbs, 1.1/2''-Square, without Reaction Arm, without Case, without Battery Pack, without Battery Charger, without Assembly Kit
Article number
80751
Availability:
PLARAD®-DA2power-48 W-BM
Battery torque wrench
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
angled
Accessories:
without any accessories
Torque: 500 to 4.800 Nm
369 to 3.540 ft.lbs
Rotation speed: 1,4 UpM to 12,9 UpM
Weight: 8,5 kg
Square drive: 1.1/2"
Battery torque wrench
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
angled
Accessories:
without any accessories
Torque: 500 to 4.800 Nm
369 to 3.540 ft.lbs
Rotation speed: 1,4 UpM to 12,9 UpM
Weight: 8,5 kg
Square drive: 1.1/2"
| Torque min. | 500 Nm |
|---|---|
| Torque max. | 4.800 Nm |
| Torque min. | 369 ft.lbs |
| Torque max. | 3.540 ft.lbs |
| Square | 1.1/2" |
| Number of Teeth (Z) | 45 Z |
| Length (L1) | 271,00 mm |
| Length (L2) | 215,00 mm |
| Length (L3) | 83,50 mm |
| Length (L4) | 43,50 mm |
| Height (H1) | 253,00 mm |
| Height (H2) | 316,50 mm |
| Gear Ø (D1) | 86,00 mm |
| Output speed G1 | 1,4 UpM |
| Output speed G2 | 2,9 UpM |
| Output speed G3 | 6,4 UpM |
| Output speed G4 | 12,9 UpM |
| Features | 60 torque regulating steps and 4 additional loosening steps, capacity control for accumulator, automatic release, actuated by safety function, fully automatic locking device |
