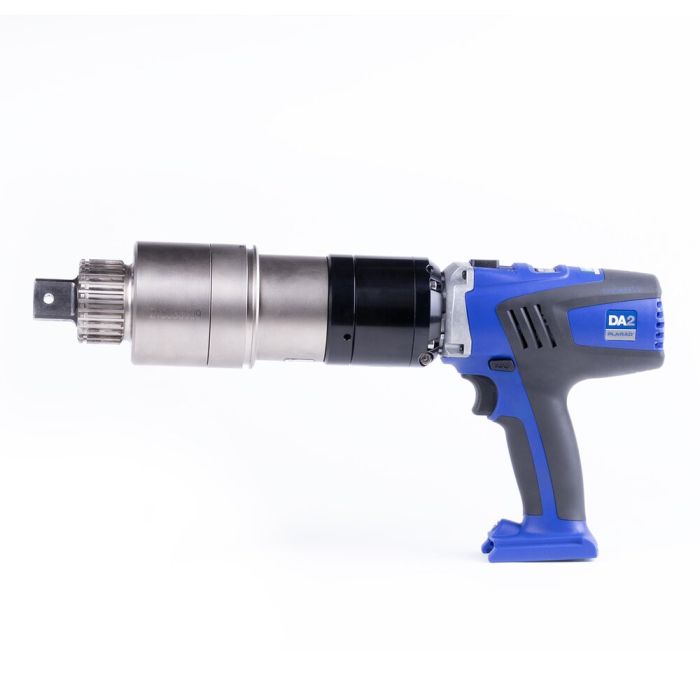

DA2power-36 BM
Battery Torque Wrench, 380-3.600 Nm, 280-2.655 ft.lbs, 1''-Square, without Reaction Arm, without Case, without Battery Pack, without Battery Charger, without Assembly Kit
Article number
86110
Availability:
PLARAD®- DA2power - 36 BM
Battery Nutrunner
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
without batteries
without charger
without hard-top transport box
without reaction arm
Torque 380 to 3.600 Nm
Rotation speed: 1,8 rpm to 15,3 rpm
Weight: 6,85 kgs (incl. Accu)
without reaction arm
Square drive: 1“
Battery Nutrunner
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
without batteries
without charger
without hard-top transport box
without reaction arm
Torque 380 to 3.600 Nm
Rotation speed: 1,8 rpm to 15,3 rpm
Weight: 6,85 kgs (incl. Accu)
without reaction arm
Square drive: 1“
| Torque min. | 380 Nm |
|---|---|
| Torque max. | 3.600 Nm |
| Torque min. | 280 ft.lbs |
| Torque max. | 2.655 ft.lbs |
| Square | 1" |
| Number of Teeth (Z) | 26 Z |
| Length (L1) | 405,00 mm |
| Length (L2) | 184,50 mm |
| Length (L3) | 61,50 mm |
| Length (L4) | 27,50 mm |
| Height (H1) | 253,00 mm |
| Gear Ø (D1) | 80,00 mm |
| Output speed G1 | 1,8 UpM |
| Output speed G2 | 3,3 UpM |
| Output speed G3 | 7,8 UpM |
| Output speed G4 | 15,3 UpM |
| Features | 60 torque regulating steps and 4 additional loosening steps, capacity control for accumulator, automatic release, actuated by safety function, fully automatic locking device |
