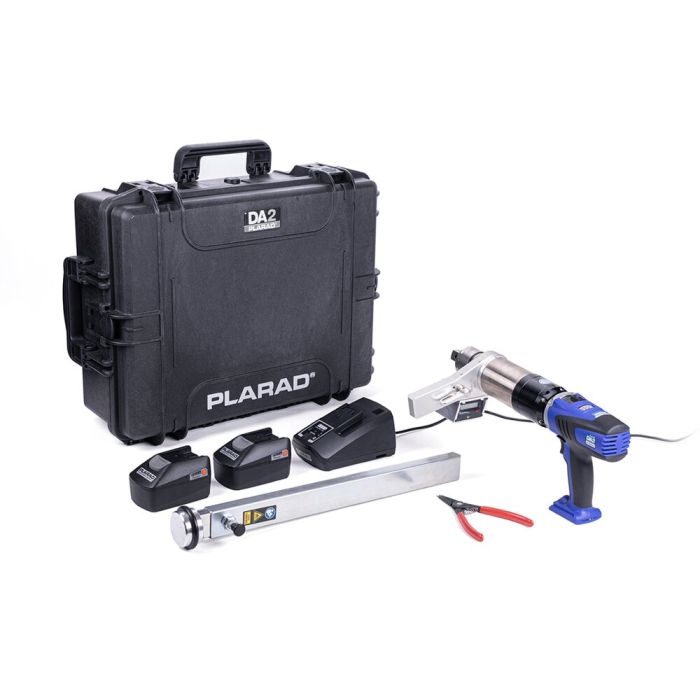

DA2motion-10 M-SET
Mobile Battery Drive, 180-1.000 Nm, 133-738 ft.lbs., 3/4''-Square, including Reaction Arm, Reaction Arm with Counter, Case, 2 x Battery Pack, Battery Charger AC230V, 50-60Hz, Assembly Kit
Article number
82115S
Availability:
PLARAD®- DA2motion 10
Mobile battery-driven power unit (18V)
with four speed gears and 60 possibilities to set torque
incl. 2 pieces 5,2 Ah high power Li-Ion batteries
incl. speedy charger 230 V (50/60 Hz)
incl. reaction arm (movable)
incl. digital counter
incl. hard-top transport box with custom-fitted inlay and trolley function
Torque: 115 -1.000 Nm
Speed: 6,8 - 63,2 RPM
Weight: 5,35 kg (incl. battery, without accessories)
Square drive: 3/4“
Mobile battery-driven power unit (18V)
with four speed gears and 60 possibilities to set torque
incl. 2 pieces 5,2 Ah high power Li-Ion batteries
incl. speedy charger 230 V (50/60 Hz)
incl. reaction arm (movable)
incl. digital counter
incl. hard-top transport box with custom-fitted inlay and trolley function
Torque: 115 -1.000 Nm
Speed: 6,8 - 63,2 RPM
Weight: 5,35 kg (incl. battery, without accessories)
Square drive: 3/4“
| Torque min. | 115 Nm |
|---|---|
| Torque max. | 1.000 Nm |
| Torque min. | 85 ft.lbs |
| Torque max. | 738 ft.lbs |
| Square | 3/4" |
| Number of Teeth (Z) | 26 Z |
| Length (L2) | 144,50 mm |
| Length (L3) | 60,50 mm |
| Length (L4) | 26,50 mm |
| Height (H1) | 253,00 mm |
| Gear Ø (D1) | 68,50 mm |
| Output speed G1 | 5,3 UpM |
| Output speed G2 | 10,8 UpM |
| Output speed G3 | 24,5 UpM |
| Output speed G4 | 48,0 UpM |
| Square Drive Socket | not included |
| Case | included (No. 78956) |
| Battery Charger | AC230V, 50-60 Hz (No. 80450) |
| Battery Pack | 2 x 18 V 5,2 Ah (No. 80342) |
| Assembly-Kit | included (No. 79679) |
| Features | Mobile battery-driven power unit, with four speed gears and 60 possibilities to set torque |
