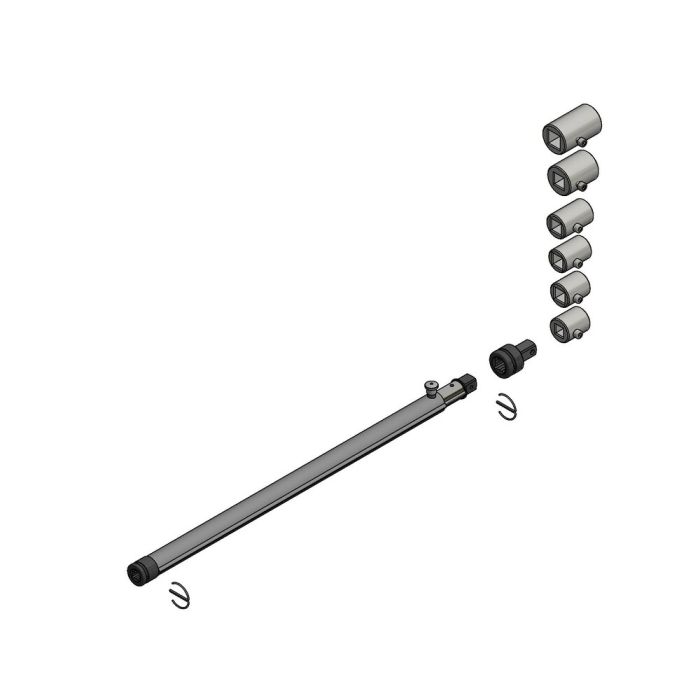

Extension complete with coupling sleeves
For DA2 motion up to 1.000 Nm
Article number
79598
Availability:
PLARAD® DA2motion 05/DA2motion 10
Prolongation „motion“
incl. 6 pcs coupling sleeves for armatures 40 to DN 350
according to DVGW GW336
Movable prolongation for underground armatures
Ranging from about 900 to 1.500 mm
Drive: 3/4" female square
Output: 1" male square
Adapter for coupling sleeves
Drive: 1" female square
Output: 25 mm Square connection to coupling sleeve
Coupling sleeve according to DVGW GW 336
Drive 25 mm
Output: AF12/14 (HA-Armature)
Output: AF14/17 (DN40/50)
Output: AF17/19 (DN65/80)
Output: AF19/22 (DN100–150)
Output: AF27/32 (DN 250-350)
Prolongation „motion“
incl. 6 pcs coupling sleeves for armatures 40 to DN 350
according to DVGW GW336
Movable prolongation for underground armatures
Ranging from about 900 to 1.500 mm
Drive: 3/4" female square
Output: 1" male square
Adapter for coupling sleeves
Drive: 1" female square
Output: 25 mm Square connection to coupling sleeve
Coupling sleeve according to DVGW GW 336
Drive 25 mm
Output: AF12/14 (HA-Armature)
Output: AF14/17 (DN40/50)
Output: AF17/19 (DN65/80)
Output: AF19/22 (DN100–150)
Output: AF27/32 (DN 250-350)
