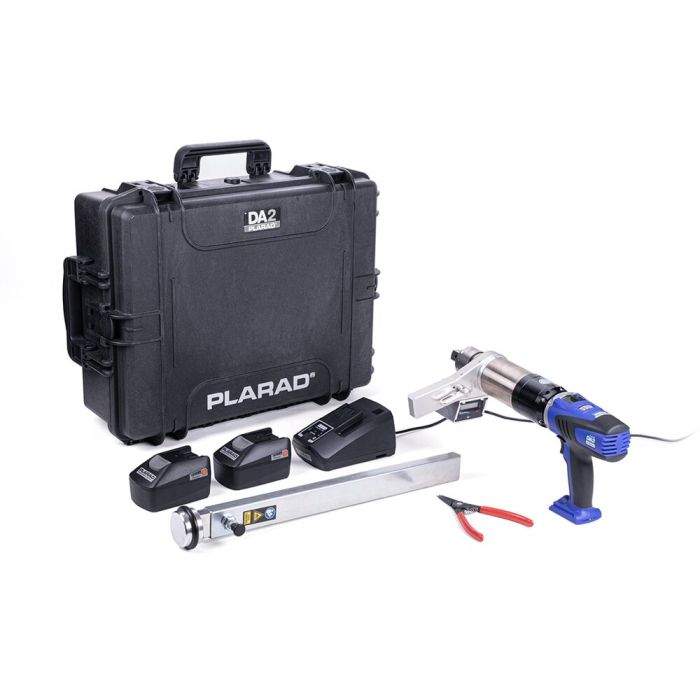

DA2motion-05 M-SET
Mobile Battery Drive, 85-550Nm, 63-406 ft.lbs., 3/4''-Square, including Reaction Arm, Reaction Arm with Counter, Case, 2 x Battery Pack, Battery Charger AC230V, 50-60Hz, Assembly Kit
Article number
82113S
Availability:
PLARAD®- DA2motion 05
Mobile battery-driven power unit (18V)
with four speed gears and 60 possibilities to set torque
incl. 2 pieces 5,2 Ah high power Li-Ion batteries
incl. speedy charger 230 V (50/60 Hz)
incl. reaction arm (movable)
incl. digital counter
incl. hard-top transport box with custom-fitted inlay and trolley function
Torque: 85 - 550 Nm
Speed: 11,1 - 98,8 RPM
Weight: 5,35 kg (incl. battery, without accessories)
Square drive: 3/4“
Mobile battery-driven power unit (18V)
with four speed gears and 60 possibilities to set torque
incl. 2 pieces 5,2 Ah high power Li-Ion batteries
incl. speedy charger 230 V (50/60 Hz)
incl. reaction arm (movable)
incl. digital counter
incl. hard-top transport box with custom-fitted inlay and trolley function
Torque: 85 - 550 Nm
Speed: 11,1 - 98,8 RPM
Weight: 5,35 kg (incl. battery, without accessories)
Square drive: 3/4“
| Torque min. | 85 Nm | |
|---|---|---|
| Torque max. | 550 Nm | |
| Torque min. | 63 ft.lbs | |
| Torque max. | 406 ft.lbs | |
| Square | 3/4" | |
| Number of Teeth (Z) | 26 Z | |
| Length (L2) | 144,50 mm | |
| Length (L3) | 60,50 mm | |
| Length (L4) | 26,50 mm | |
| Height (H1) | 253,00 mm | |
| Gear Ø (D1) | 68,50 mm | |
| Output speed G1 | 8,4 UpM | |
| Output speed G2 | 16,6 UpM | |
| Output speed G3 | 37,0 UpM | |
| Output speed G4 | 71,6 UpM | |
| Set Contents | ||
| Square Drive Socket | not included | |
| Reaction Arm | inklusive (No. 78897) | |
| Case | included (No. 78956) | |
| Battery Charger | AC230V, 50-60 Hz (No. 80450) | |
| Battery Pack | 2 x 18 V 5,2 Ah (No. 80342) | |
| Assembly-Kit | included (No. 79679) | |
| Features | Mobile battery-driven power unit, with four speed gears and 60 possibilities to set torque | |
