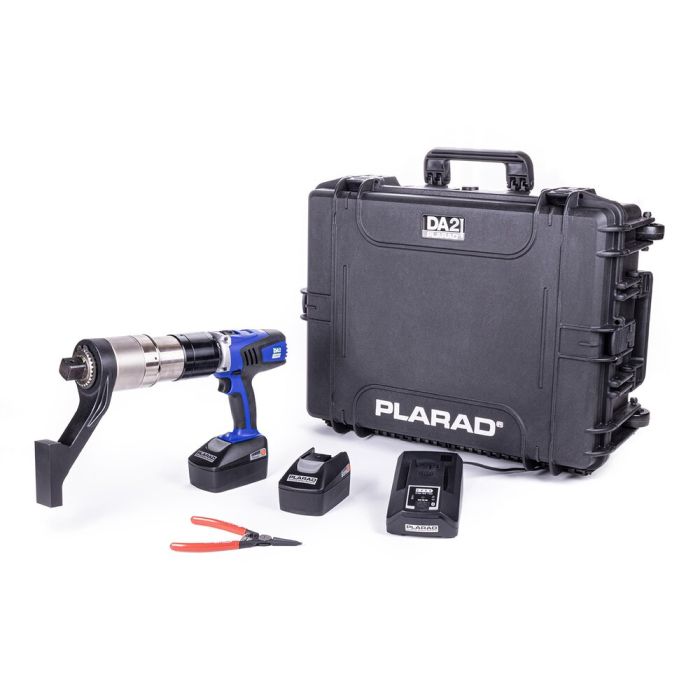

DA2docu-80 SET
Battery Torque Wrench, 700-8.000 Nm, 516-5.900 ft.lbs, 1.1/2''-Square, with documentation function, including Reaction Arm, Case, 3x Battery Pack, Battery Charger AC230V,50-60Hz,Assembly Kit
Article number
80760S
Availability:
PLARAD®- DA2docu-80-Set
Battery Nutrunner
incl. recharger 220-240 V
(50/60 Hz), charging voltage 18 V
incl. 3 pieces lithium ion accumulator 5,2 Ah
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
incl. hard-top transport box
with custom-fitted inlay and trolley function
incl. reaction arm
DA2docu version is including following features:
- documentation of each bolting case
- rotation indicator
- data recording by GPS
- tool diagnostic and reporting
- data transfer software
Torque 900 to 8.000 Nm
Rotation speed: 0,65 rpm to 5,65 rpm
Weight: 13,5 kgs (incl. Accu)
without reaction arm
Square drive: 1 1/2“
Battery Nutrunner
incl. recharger 220-240 V
(50/60 Hz), charging voltage 18 V
incl. 3 pieces lithium ion accumulator 5,2 Ah
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
incl. hard-top transport box
with custom-fitted inlay and trolley function
incl. reaction arm
DA2docu version is including following features:
- documentation of each bolting case
- rotation indicator
- data recording by GPS
- tool diagnostic and reporting
- data transfer software
Torque 900 to 8.000 Nm
Rotation speed: 0,65 rpm to 5,65 rpm
Weight: 13,5 kgs (incl. Accu)
without reaction arm
Square drive: 1 1/2“
| Torque min. | 700 Nm |
|---|---|
| Torque max. | 8.000 Nm |
| Torque min. | 516 ft.lbs |
| Torque max. | 5.900 ft.lbs |
| Square | 1.1/2" |
| Number of Teeth (Z) | 45 Z |
| Length (L2) | 300,00 mm |
| Length (L3) | 106,00 mm |
| Length (L4) | 43,50 mm |
| Height (H1) | 253,00 mm |
| Gear Ø (D1) | 101,00 mm |
| Features | documentation of each bolting case, rotation indicator, data recording by GPS, tool diagnostic and reporting, data transfer software |
