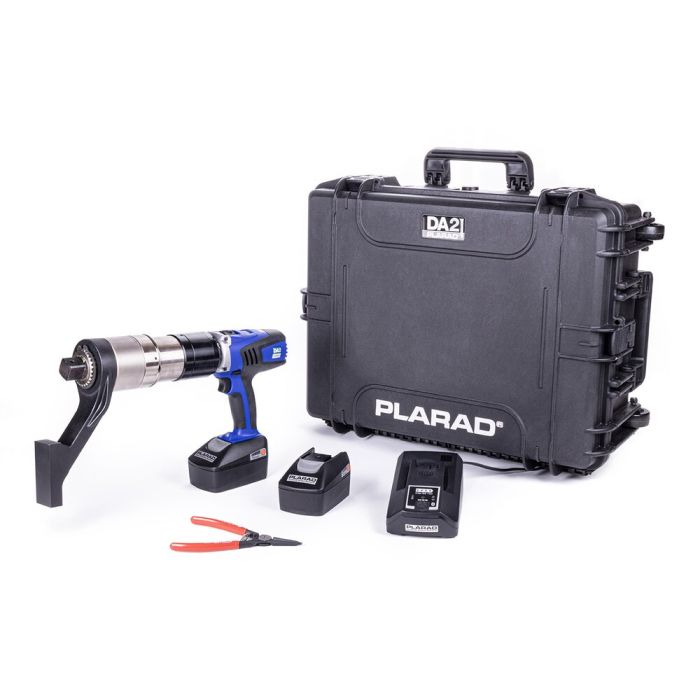

DA2docu-05 SET
Battery Torque Wrench, 130-550 Nm, 96-406 ft.lbs, 3/4''-Square, with documentation function, including Reaction Arm, Case, 2x Battery Pack, Battery Charger AC230V, 50-60Hz, Assembly Kit
Article number
80700S
Availability:
PLARAD®- DA2docu-05
Battery Nutrunner
incl. recharger 220-240 V
(50/60 Hz), charging voltage 18 V
incl. 2 pieces lithium ion accumulator 5,2 Ah
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
incl. hard-top transport box
with custom-fitted inlay and trolley function
incl. reaction arm
DA2docu version is including following features:
- documentation of each bolting case
- rotation indicator
- data recording by GPS
- tool diagnostic and reporting
- data transfer software
Torque 130 to 550 Nm
Rotation speed: 8,4 rpm to 37,0 rpm
Weight: 5,35 kgs (incl. Accu)
Without reaction arm
Square drive: 3/4 “
Battery Nutrunner
incl. recharger 220-240 V
(50/60 Hz), charging voltage 18 V
incl. 2 pieces lithium ion accumulator 5,2 Ah
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
incl. hard-top transport box
with custom-fitted inlay and trolley function
incl. reaction arm
DA2docu version is including following features:
- documentation of each bolting case
- rotation indicator
- data recording by GPS
- tool diagnostic and reporting
- data transfer software
Torque 130 to 550 Nm
Rotation speed: 8,4 rpm to 37,0 rpm
Weight: 5,35 kgs (incl. Accu)
Without reaction arm
Square drive: 3/4 “
| Torque min. | 130 Nm |
|---|---|
| Torque max. | 550 Nm |
| Torque min. | 96 ft.lbs |
| Torque max. | 406 ft.lbs |
| Square | 3/4" |
| Number of Teeth (Z) | 26 Z |
| Length (L2) | 144,50 mm |
| Length (L3) | 60,50 mm |
| Length (L4) | 26,50 mm |
| Height (H1) | 253,00 mm |
| Gear Ø (D1) | 68,50 mm |
| Output speed G1 | 8,4 UpM |
| Output speed G2 | 16,6 UpM |
| Output speed G3 | 37,0 UpM |
| Output speed G4 | 71,6 UpM |
| Features | documentation of each bolting case, rotation indicator, data recording by GPS, tool diagnostic and reporting, data transfer software |
