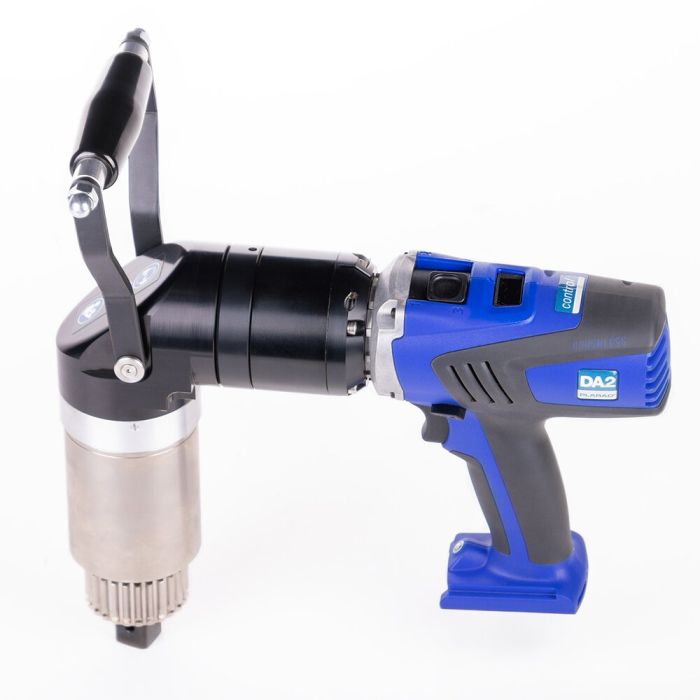

DA2control-80 W-BM
Battery Torque Wrench, Angle Version, 700-8.000 Nm, 516-5.900 ft.lbs, 1.1/2''-Square, without Reaction Arm, without Case, without Battery Pack, without Battery Charger, without Assembly Kit
Article number
85226
Availability:
PLARAD®-DA2control-80 W
Battery Torque Wrench
- Torque/angle function
- Direction of rotation detection
- Bolting parameters can be set directly on the device
- Intuitive operation
- Function updates on site (OTA over-the-air)
angled
Accessories:
without any accessories
Upgrade option:
from DA2power version
Torque: 700 to 8.000 Nm
516 to 5.900 ft.lbs
Rotation speed: 0,7 UpM to 5,7 UpM
Weight: 13,2 kg
Square drive: 1.1/2"
Battery Torque Wrench
- Torque/angle function
- Direction of rotation detection
- Bolting parameters can be set directly on the device
- Intuitive operation
- Function updates on site (OTA over-the-air)
angled
Accessories:
without any accessories
Upgrade option:
from DA2power version
Torque: 700 to 8.000 Nm
516 to 5.900 ft.lbs
Rotation speed: 0,7 UpM to 5,7 UpM
Weight: 13,2 kg
Square drive: 1.1/2"
| Torque min. | 700 Nm |
|---|---|
| Torque max. | 8.000 Nm |
| Torque min. | 516 ft.lbs |
| Torque max. | 5.900 ft.lbs |
| Square | 1.1/2" |
| Number of Teeth (Z) | 39 Z |
| Length (L1) | 271,00 mm |
| Length (L2) | 214,50 mm |
| Length (L3) | 106,00 mm |
| Length (L4) | 43,50 mm |
| Height (H1) | 253,00 mm |
| Height (H2) | 400,50 mm |
| Gear Ø (D1) | 101,00 mm |
| Output speed G1 | 0,7 UpM |
| Output speed G2 | 1,3 UpM |
| Output speed G3 | 2,9 UpM |
| Output speed G4 | 5,7 UpM |
| Features | Torque/angle function, Direction of rotation detection, Bolting parameters can be set directly on the device, Intuitive operation, Function updates on site (OTA over-the-air) |
