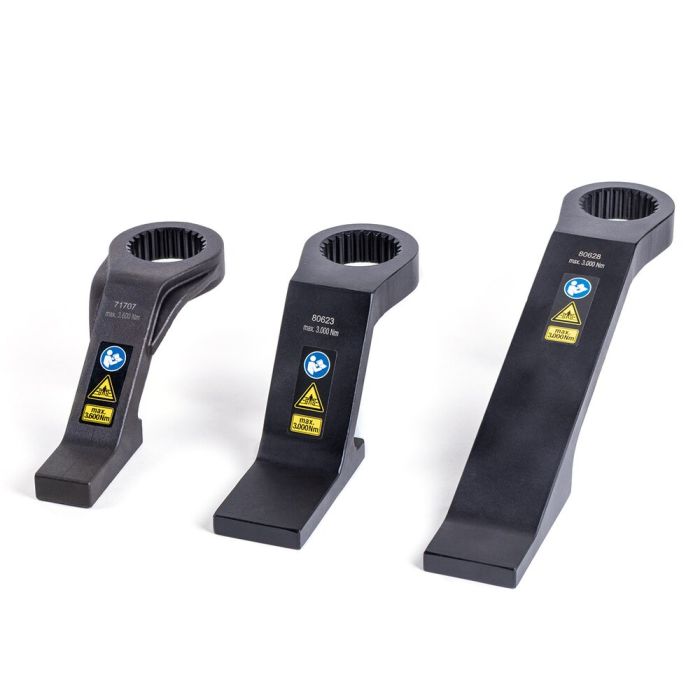

Reaction Arm RA B DR Z 39
Up to 8.000 Nm, suitable for DA/DE/DP - 80
Article number
81398
Availability:
PLARAD® - Standard reaction arm
DA2/DE/DP1 80
Steel
Max. capacity: up to 8.000 Nm
Length: 250 mm
Height: 165 mm
Width reaction block: 140 mm
Weight: 7,35 kg
DA2/DE/DP1 80
Steel
Max. capacity: up to 8.000 Nm
Length: 250 mm
Height: 165 mm
Width reaction block: 140 mm
Weight: 7,35 kg
| Torque max. | 8.000 Nm |
|---|---|
| Variation | Basic |
| Product Group | DA/DE/DP |
| Product Assignment | DA/DE/DP1-2 65/80 |
| Number of Teeth (Z) | 39 Z |
| Length (L1) | 300,00 mm |
| Width (B) | 100,00 mm |
| Height (H1) | 165,00 mm |
