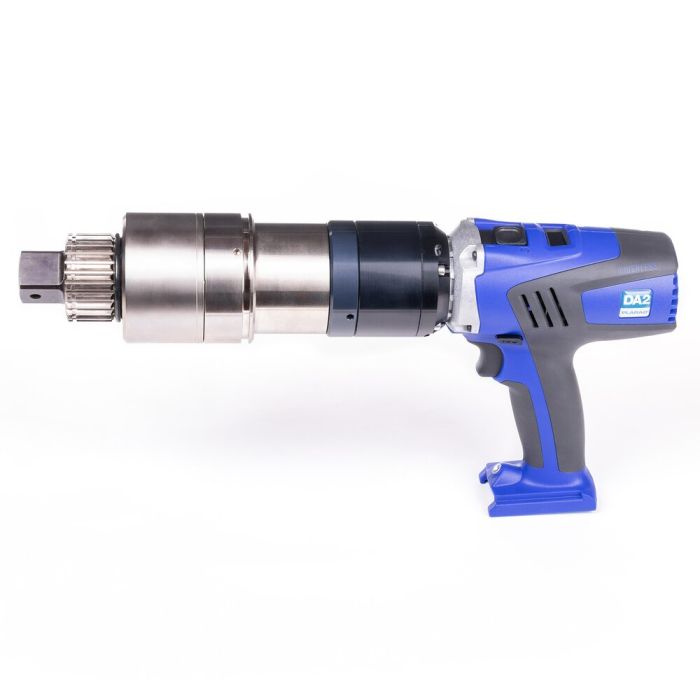

DA2control-48 BM
Battery Torque Wrench, 500-4.800 Nm, 369-3.540 ft.lbs, 1.1/2''-Square, Torque/Rotation without Reaction Arm, without Case, without Battery Pack, without Battery Charger, without Assembly Kit
Article number
85211
Availability:
PLARAD®-DA2control-48
Battery Torque Wrench
- Torque/angle function
- Direction of rotation detection
- Bolting parameters can be set directly on the device
- Intuitive operation
- Function updates on site (OTA over-the-air)
Accessories:
without any accessories
Upgrade option:
from DA2power version
Torque: 500 to 4.800 Nm
369 to 3.540 ft.lbs
Rotation speed: 1,4 UpM to 12,9 UpM
Weight: 10,2 kg
Square drive: 1.1/2"
Battery Torque Wrench
- Torque/angle function
- Direction of rotation detection
- Bolting parameters can be set directly on the device
- Intuitive operation
- Function updates on site (OTA over-the-air)
Accessories:
without any accessories
Upgrade option:
from DA2power version
Torque: 500 to 4.800 Nm
369 to 3.540 ft.lbs
Rotation speed: 1,4 UpM to 12,9 UpM
Weight: 10,2 kg
Square drive: 1.1/2"
| Torque min. | 500 Nm |
|---|---|
| Torque max. | 4.800 Nm |
| Torque min. | 369 ft.lbs |
| Torque max. | 3.540 ft.lbs |
| Square | 1.1/2" |
| Number of Teeth (Z) | 45 Z |
| Length (L1) | 437,00 mm |
| Length (L2) | 216,00 mm |
| Length (L3) | 83,50 mm |
| Length (L4) | 43,50 mm |
| Height (H1) | 158,00 mm |
| Gear Ø (D1) | 86,00 mm |
| Output speed G1 | 1,4 UpM |
| Output speed G2 | 2,9 UpM |
| Output speed G3 | 6,4 UpM |
| Output speed G4 | 12,9 UpM |
| Features | Torque/angle function, Direction of rotation detection, Bolting parameters can be set directly on the device, Intuitive operation, Function updates on site (OTA over-the-air) |
