PSE-64 2.259
Hydraulic Tensioner, Single-Stage, M 64, maximum pressure 1.500 bar, 21.756 psi, maximum load 2.259 KN
Article number
67289
Availability:

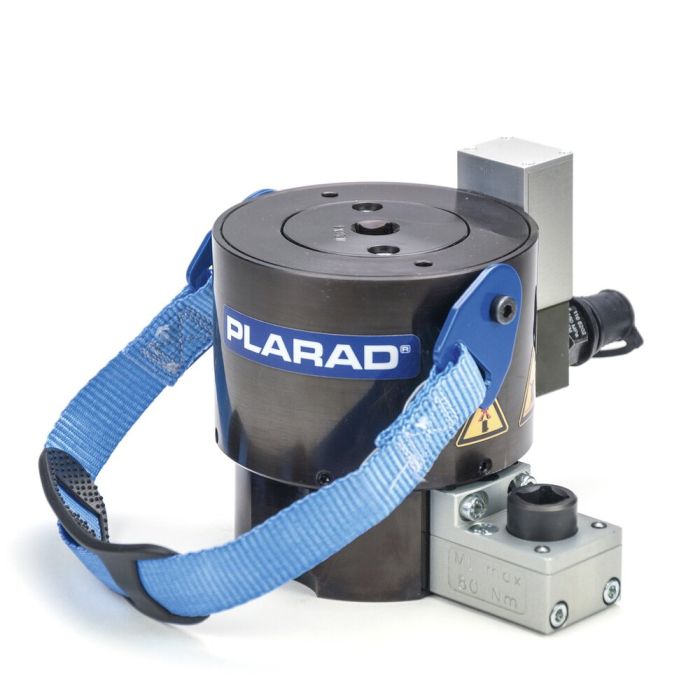

PLARAD® - PSE-64 2.259
Hydraulic Tensioner
1.500bar, 2.259kN
M64x6, AF 95
Features:
single-stage
Incl. spring reset
incl. gear drive
incl. cycle counter
Thread: M64x6
Pivot sleeve AF: 95 mm
Tensioning force max: 2.259 kN / 546.246 lbf
Operating pressure max: 1.500 bar / 21.756 psi
No. of cycles max: 8.000
Tensioner Ø (D1): 205,00
Weight: 0 kg
Hydraulic Tensioner
1.500bar, 2.259kN
M64x6, AF 95
Features:
single-stage
Incl. spring reset
incl. gear drive
incl. cycle counter
Thread: M64x6
Pivot sleeve AF: 95 mm
Tensioning force max: 2.259 kN / 546.246 lbf
Operating pressure max: 1.500 bar / 21.756 psi
No. of cycles max: 8.000
Tensioner Ø (D1): 205,00
Weight: 0 kg
| Operating Pressure max. | 1.500 bar |
|---|---|
| Operating Pressure max. | 21.756 psi |
| TensioningForce max. | 2.259 kN |
| TensioningForce max. | 546.246 lbf |
| Rotary Sleeve AF (M) | 95 mm |
| D1 Ø Spannzylinder | 205,00 mm |
| Stages | 1 |
| Length (L1) | 291,00 mm |
| Height (H1) | 182,00 mm |
| Height (H2) | 165,00 mm |
| Height (H3) | 62,00 mm |
| Diameter (D1) | 205,00 mm |
| Diameter (D2) | 64 mm |
