PSE 42 980
Hydraulic Tensioner, Single-Stage, M 42, maximum pressure 1.500 bar, 21.756 psi, maximum load 980 KN
Article number
67277
Availability:

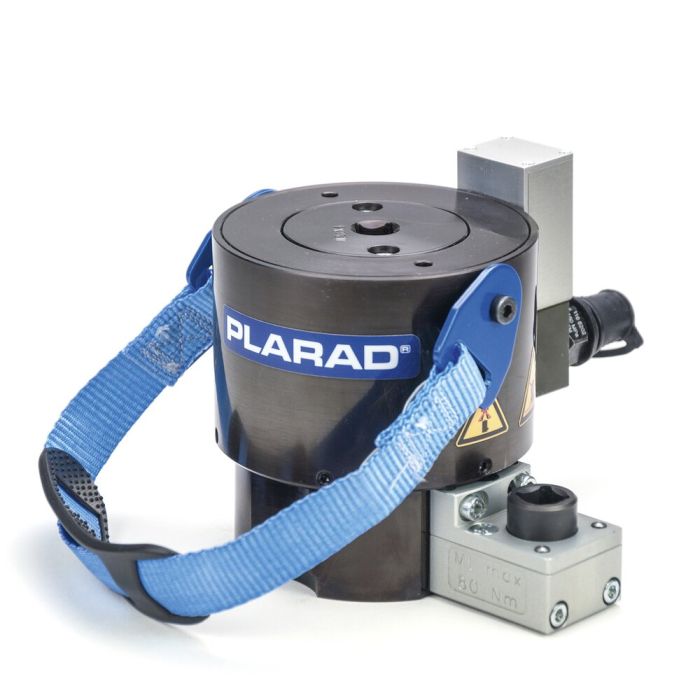

PLARAD®- Hydraulic tensioner
PSE 42-980
Single stage
Tensioning piece: M 42
incl. cycle counter, automatic piston return and gear drive
max. pressure: 1.500 bar
max tensioning force.: 980 KN
PSE 42-980
Single stage
Tensioning piece: M 42
incl. cycle counter, automatic piston return and gear drive
max. pressure: 1.500 bar
max tensioning force.: 980 KN
| Operating Pressure max. | 1.500 bar |
|---|---|
| Operating Pressure max. | 21.756 psi |
| TensioningForce max. | 980 kN |
| TensioningForce max. | 228.153 lbf |
| Rotary Sleeve AF (M) | 65 mm |
| D1 Ø Spannzylinder | 135,00 mm |
| Stages | 1 |
| Length (L1) | 236,00 mm |
| Height (H1) | 135,00 mm |
| Height (H2) | 121,00 mm |
| Height (H3) | 43,00 mm |
| Diameter (D1) | 135,00 mm |
| Diameter (D2) | 42 mm |
Here you can find all relevant downloads for this product:
| Product range | Type | Description | Language | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Accessory parts for this product:
