PSD 48 1278
Hydraulic Tensioner, Two stage, M 48, maximum pressure 1.500 bar, 21.756 psi, maximum load 1.278 KN
Article number
52847
Availability:

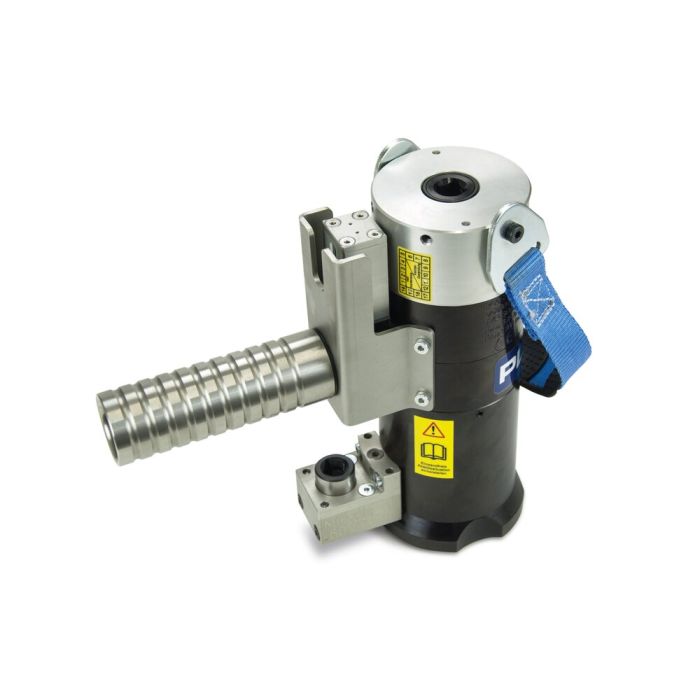

PLARAD®- Hydraulic tensioner
PSD 48-1278
Two stages
Tensioning piece: M 48 x 5
incl. cycle counter and gear box
max. pressure: 1.500 bar
max tensioning force.: 1.278 KN
PSD 48-1278
Two stages
Tensioning piece: M 48 x 5
incl. cycle counter and gear box
max. pressure: 1.500 bar
max tensioning force.: 1.278 KN
| Operating Pressure max. | 1.500 bar |
|---|---|
| Operating Pressure max. | 21.756 psi |
| TensioningForce max. | 1.278 kN |
| TensioningForce max. | 301.364 lbf |
| Rotary Sleeve AF (M) | 75 mm |
| D1 Ø Spannzylinder | 112,00 mm |
| Stages | 2 |
| Length (L1) | 271,00 mm |
| Height (H1) | 269,00 mm |
| Height (H2) | 108,00 mm |
| Height (H3) | 48,00 mm |
| Diameter (D1) | 112,00 mm |
| Diameter (D2) | 48 mm |
Here you can find all relevant downloads for this product:
| Product range | Type | Description | Language | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Accessory parts for this product:
