PSD 30 471
Hydraulic Tensioner, Two stage, M 30, maximum pressure 1.500 bar, 21.756 psi, maximum load 471 KN
Article number
52820
Availability:

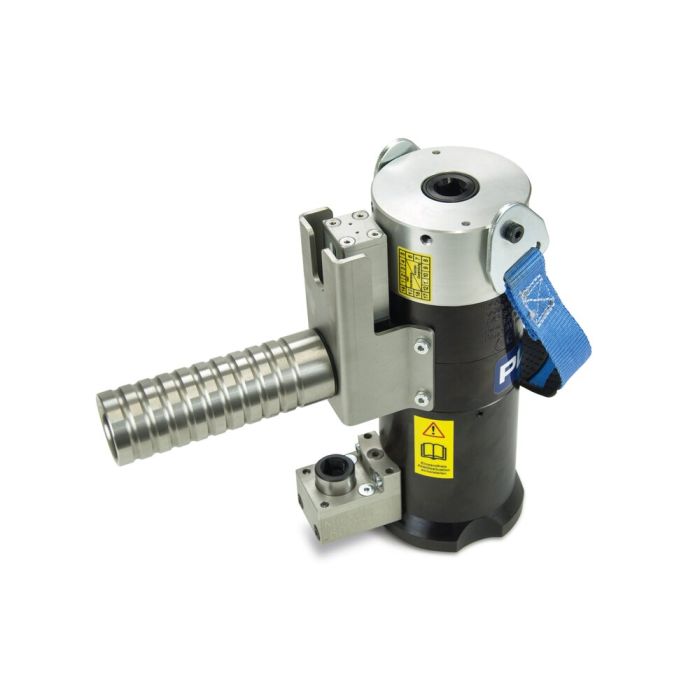

PLARAD®- Hydraulic tensioner
PSD 30-471
Two stages
Tensioning piece: M 30 x 3,5
incl. cycle counter and gear box
max. pressure: 1.500 bar
max tensioning force.: 471 KN
PSD 30-471
Two stages
Tensioning piece: M 30 x 3,5
incl. cycle counter and gear box
max. pressure: 1.500 bar
max tensioning force.: 471 KN
| Operating Pressure max. | 1.500 bar |
|---|---|
| Operating Pressure max. | 21.756 psi |
| TensioningForce max. | 471 kN |
| TensioningForce max. | 106.356 lbf |
| Rotary Sleeve AF (M) | 46 mm |
| D1 Ø Spannzylinder | 71,00 mm |
| Stages | 2 |
| Length (L1) | 228,00 mm |
| Height (H1) | 196,00 mm |
| Height (H2) | 70,00 mm |
| Height (H3) | 31,00 mm |
| Diameter (D1) | 71,00 mm |
| Diameter (D2) | 30 mm |
