MX-EC 45 TS-2AS
Hydraulic Torque Wrench, 450-4.500 Nm, 332-3.319 ft.lbs., 800 bar, 11.603 psi, 1''-Square, Aluminium, Multi-Axle Swivel Joint
Article number
53055
Availability:

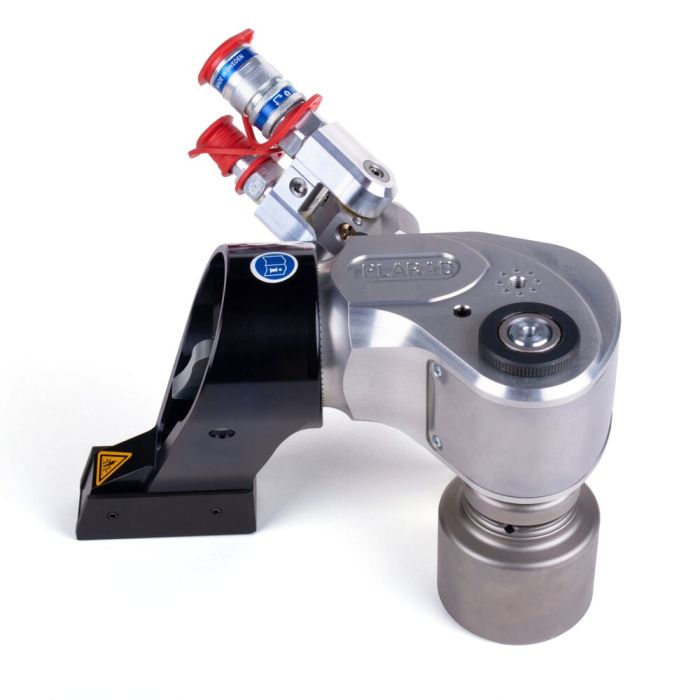

PLARAD® - MX-EC 45 TS 2AS
Hydraulic torque wrench
Double-hose technology
Multi-axle swivel joint
incl. reaction arm
Capacity range: 450 - 4.500 Nm
Width: 67 mm
Weight: about 4,9 kg
Head radius: 32 mm
Square drive: 1"
Max pressure: 800 bar
Hydraulic torque wrench
Double-hose technology
Multi-axle swivel joint
incl. reaction arm
Capacity range: 450 - 4.500 Nm
Width: 67 mm
Weight: about 4,9 kg
Head radius: 32 mm
Square drive: 1"
Max pressure: 800 bar
| Torque min. | 450 Nm |
|---|---|
| Torque max. | 4.500 Nm |
| Torque min. | 332 ft.lbs |
| Torque max. | 3.319 ft.lbs |
| Square | 1" |
| Operating Pressure max. | 800 bar |
| Operating Pressure max. | 11.603 psi |
| Length (L1) | 170,00 mm |
| Length (L2) | 89,00 mm |
| Length (L3) | 44,00 mm |
| Width (B1) | 67,00 mm |
| Height (H1) | 127,00 mm |
| Head Radius (R) | 32,00 mm |
| Features | Power ranges from 50 to 65,000 Nm and the smallest dimensions open up new possibilities for the MX-EC, even in hard-to-reach work areas |
