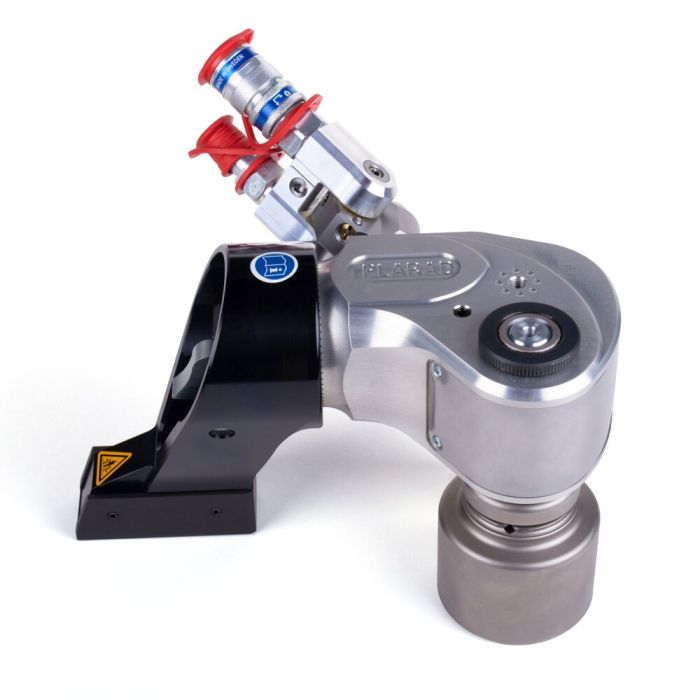

MX-EC-300 TS-2AS
Hydraulic Torque Wrench, 3.000-30.000 Nm, 2.213-22.127 ft.lbs., 800 bar, 11.603 psi, 2.1/2''-Square, Aluminium, Multi-Axle Swivel Joint
Article number
64715
Availability:
PLARAD® - MX-EC 300 TS 2AS
Hydraulic torque wrench
Double-hose technology
Multi-axle swivel joint
incl. reaction arm
Capacity range: 3.000 - 30.000 Nm
Width: 130 mm
Weight: about 35,5 kg
Head radius: 35,5 mm
Square drive: 2 1/2"
Max pressure: 800 bar
Hydraulic torque wrench
Double-hose technology
Multi-axle swivel joint
incl. reaction arm
Capacity range: 3.000 - 30.000 Nm
Width: 130 mm
Weight: about 35,5 kg
Head radius: 35,5 mm
Square drive: 2 1/2"
Max pressure: 800 bar
| Torque min. | 3.000 Nm |
|---|---|
| Torque max. | 30.000 Nm |
| Torque min. | 2.213 ft.lbs |
| Torque max. | 22.127 ft.lbs |
| Square | 2.1/2" |
| Operating Pressure max. | 800 bar |
| Operating Pressure max. | 11.603 psi |
| Length (L1) | 319,90 mm |
| Length (L2) | 146,00 mm |
| Length (L3) | 85,00 mm |
| Width (B1) | 130,00 mm |
| Height (H1) | 245,00 mm |
| Head Radius (R) | 61,50 mm |
| Features | Power ranges from 50 to 65,000 Nm and the smallest dimensions open up new possibilities for the MX-EC, even in hard-to-reach work areas |
