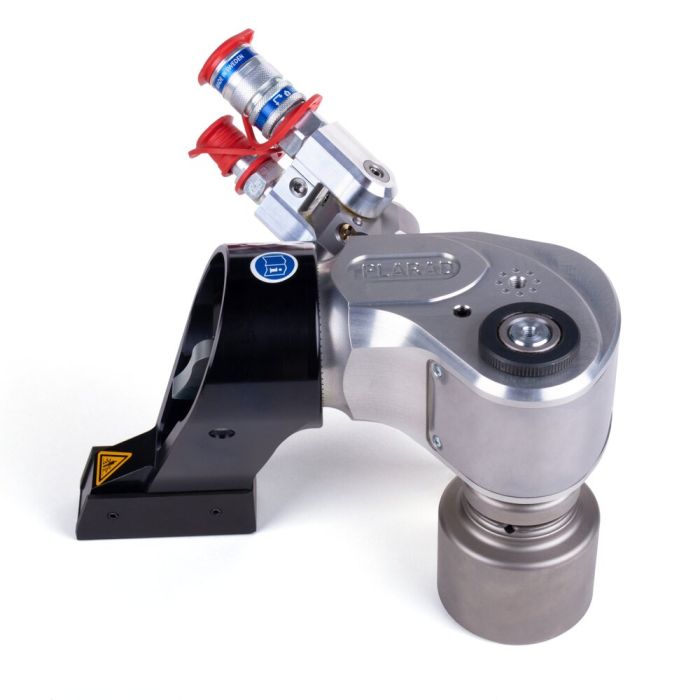

MX-EC 200 TS-2AS
Hydraulic Torque Wrench, 2.000-20.000 Nm, 1.475-14.751 ft.lbs., 800 bar, 11.603 psi, 2.1/2''-Square, Aluminium, Multi-Axle Swivel Joint
Article number
53309
Availability:
PLARAD® - MX-EC 200 TS 2AS
Hydraulic torque wrench
Double-hose technology
Multi-axle swivel joint
incl. reaction arm
Capacity range: 2.000 - 20.500 Nm
Width: 112 mm
Weight: about 20,5 kg
Head radius: 55 mm
Square drive: 2 1/2"
Max pressure: 800 bar
Hydraulic torque wrench
Double-hose technology
Multi-axle swivel joint
incl. reaction arm
Capacity range: 2.000 - 20.500 Nm
Width: 112 mm
Weight: about 20,5 kg
Head radius: 55 mm
Square drive: 2 1/2"
Max pressure: 800 bar
| Torque min. | 2.000 Nm |
|---|---|
| Torque max. | 20.000 Nm |
| Torque min. | 1.475 ft.lbs |
| Torque max. | 14.751 ft.lbs |
| Square | 2.1/2" |
| Operating Pressure max. | 800 bar |
| Operating Pressure max. | 11.603 psi |
| Length (L1) | 277,00 mm |
| Length (L2) | 125,00 mm |
| Length (L3) | 71,00 mm |
| Width (B1) | 112,00 mm |
| Height (H1) | 213,00 mm |
| Features | Power ranges from 50 to 65,000 Nm and the smallest dimensions open up new possibilities for the MX-EC, even in hard-to-reach work areas |
Here you can find all relevant downloads for this product:
| Product range | Type | Description | Language | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Accessory parts for this product:
