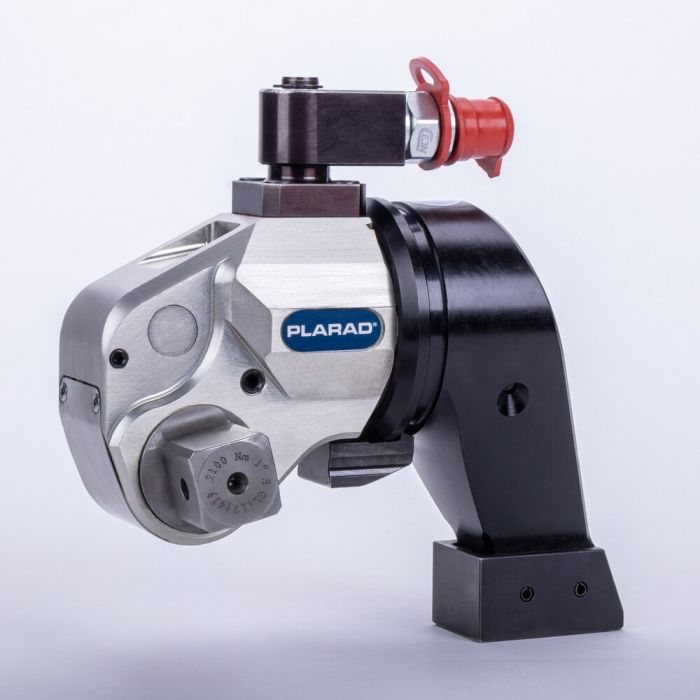

MSX/T 45 MS -AL
Hydraulic Torque Wrench, 450-4.500 Nm, 332-3.319 ft.lbs., 800 bar, 11.603 psi, 1''-Square, Aluminium, Single-Hose Technology
Article number
53081
Availability:
PLARAD® - MX-EC 45 MS
Hydraulic torque wrench
Single-hose technology
incl. reaction arm
Capacity range: 450 - 4.500 Nm
Width: 67 mm
Weight: about 6,3 kg
Head radius: 32 mm
Square drive: 1"
Max pressure: 800 bar
Hydraulic torque wrench
Single-hose technology
incl. reaction arm
Capacity range: 450 - 4.500 Nm
Width: 67 mm
Weight: about 6,3 kg
Head radius: 32 mm
Square drive: 1"
Max pressure: 800 bar
| Torque min. | 450 Nm |
|---|---|
| Torque max. | 4.500 Nm |
| Torque min. | 332 ft.lbs |
| Torque max. | 3.319 ft.lbs |
| Square | 1" |
| Operating Pressure max. | 800 bar |
| Operating Pressure max. | 11.603 psi |
| Length (L1) | 187,50 mm |
| Width (B1) | 67,00 mm |
| Head Radius (R) | 32,00 mm |
Here you can find all relevant downloads for this product:
| Product range | Type | Description | Language | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Accessory parts for this product:
