MSX/T 400 TS-2AS
Hydraulic Torque Wrench, 4.000-40.000 Nm, 2.950-29.502 ft.lbs., 800 bar, 11.603 psi, 2.1/2''-Square, Aluminium, Multi-Axle Swivel Joint
Article number
53334
Availability:

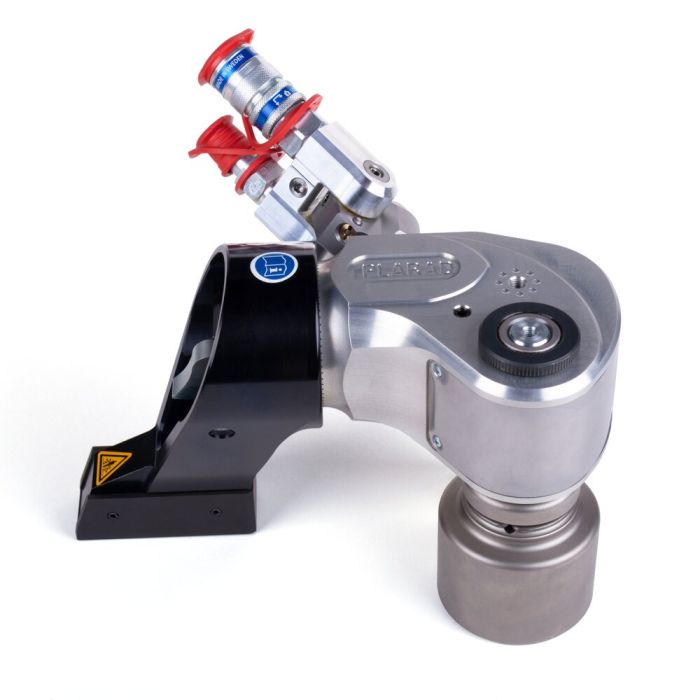

PLARAD® - MSX/T 400 TS 2AS
Hydraulic torque wrench
Double-hose technology
Multi-axle swivel joint
incl. reaction arm
Capacity range: 4.000 - 40.000 Nm
Width: 136 mm
Weight: about 49,5 kg
Head radius: 66,5 mm
Square drive: 2 1/2"
Max pressure: 800 bar
Hydraulic torque wrench
Double-hose technology
Multi-axle swivel joint
incl. reaction arm
Capacity range: 4.000 - 40.000 Nm
Width: 136 mm
Weight: about 49,5 kg
Head radius: 66,5 mm
Square drive: 2 1/2"
Max pressure: 800 bar
| Torque min. | 4.000 Nm |
|---|---|
| Torque max. | 40.000 Nm |
| Torque min. | 2.950 ft.lbs |
| Torque max. | 29.502 ft.lbs |
| Square | 2.1/2" |
| Operating Pressure max. | 800 bar |
| Operating Pressure max. | 11.603 psi |
| Length (L1) | 353,50 mm |
| Length (L2) | 166,00 mm |
| Length (L3) | 90,00 mm |
| Width (B1) | 136,00 mm |
| Height (H1) | 273,50 mm |
| Head Radius (R) | 66,50 mm |
Here you can find all relevant downloads for this product:
| Product range | Type | Description | Language | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Accessory parts for this product:
