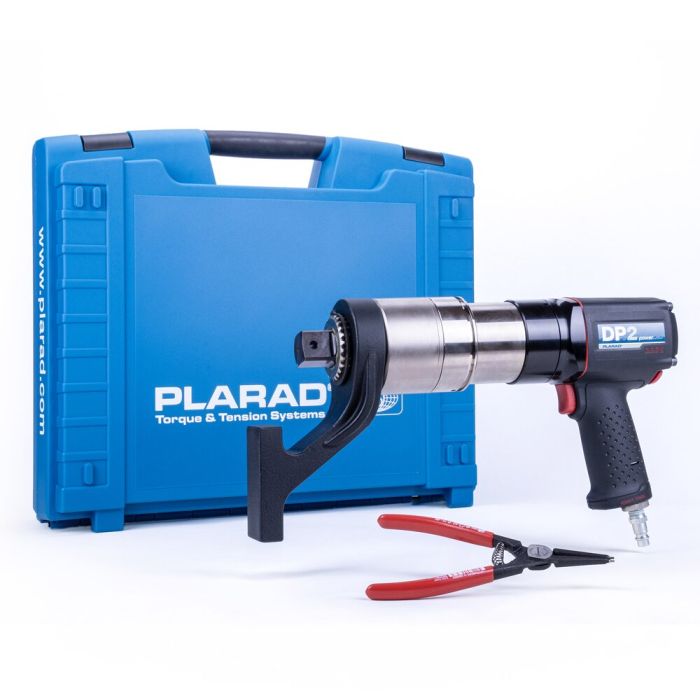

DP2power-48 SET
Pneumatic Torque Wrench, 1.000-4.800 Nm, 738-3.540 ft.lbs, 1.1/2"-Square,including Reaction Arm, Case and Assembly Kit
Article number
79721S
Availability:
PLARAD®-DP2power-48 SET
Pneumatic Torque Wrench
Accessories:
incl. customized accessories
Torque: 1.000 to 4.800 Nm
738 to 3.540 ft.lbs
Rotation speed: 2,200 UpM
Weight: 16,8 kg
Square drive: 1.1/2"
Pneumatic Torque Wrench
Accessories:
incl. customized accessories
Torque: 1.000 to 4.800 Nm
738 to 3.540 ft.lbs
Rotation speed: 2,200 UpM
Weight: 16,8 kg
Square drive: 1.1/2"
| Torque min. | 1.000 Nm |
|---|---|
| Torque max. | 4.800 Nm |
| Torque min. | 738 ft.lbs |
| Torque max. | 3.540 ft.lbs |
| Square | 1.1/2" |
| Length (L1) | 378,00 mm |
| Length (L2) | 167,50 mm |
| Length (L3) | 83,50 mm |
| Length (L4) | 43,50 mm |
| Height (H1) | 181,00 mm |
| Gear Ø (D1) | 86,00 mm |
| Number of Teeth (Z) | 45 Z |
| Square Drive Socket | not included |
| Case | including |
| Features | Less noise, less vibration and more precision than classic impact wrenches, Powerful and compact design thanks to maximum efficiency drive |
Here you can find all relevant downloads for this product:
| Product range | Type | Description | Language | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
