DP2power-10 SET
Pneumatic Torque Wrench, 250-1.000 Nm, 184-738 ft.lbs, 3/4"-Square,including Reaction Arm, Case and Assembly Kit
Article number
79020S
Availability:

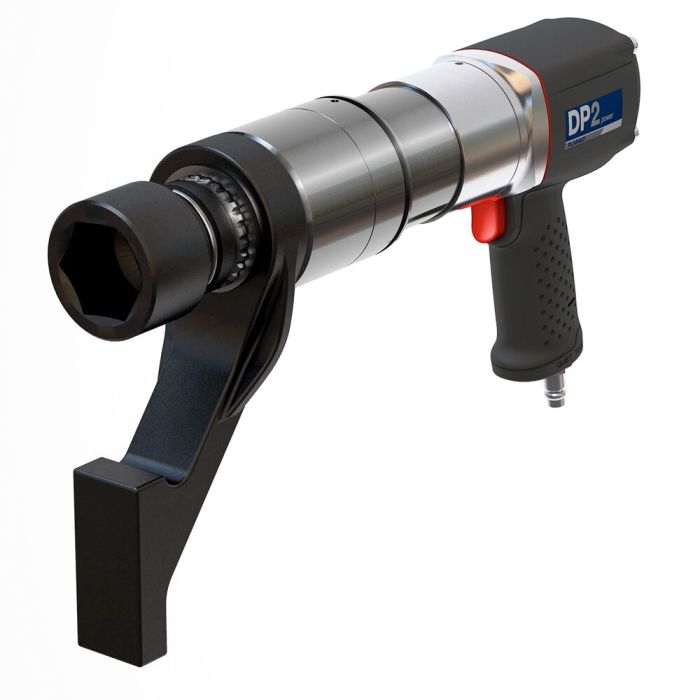

PLARAD®-DP2power-10 SET
Pneumatic Torque Wrench
Accessories:
incl. customized accessories
Torque: 250 to 1.000 Nm
184 to 738 ft.lbs
Rotation speed: 11,900 UpM
Weight: 12 kg
Square drive: 3/4"
Pneumatic Torque Wrench
Accessories:
incl. customized accessories
Torque: 250 to 1.000 Nm
184 to 738 ft.lbs
Rotation speed: 11,900 UpM
Weight: 12 kg
Square drive: 3/4"
| Torque min. | 250 Nm |
|---|---|
| Torque max. | 1.000 Nm |
| Torque min. | 184 ft.lbs |
| Torque max. | 738 ft.lbs |
| Square | 3/4" |
| Length (L1) | 306,00 mm |
| Length (L2) | 145,00 mm |
| Length (L3) | 60,50 mm |
| Length (L4) | 26,50 mm |
| Height (H1) | 181,00 mm |
| Gear Ø (D1) | 68,50 mm |
| Number of Teeth (Z) | 26 Z |
| Square Drive Socket | not included |
| Case | including |
| Features | Less noise, less vibration and more precision than classic impact wrenches, Powerful and compact design thanks to maximum efficiency drive |
Here you can find all relevant downloads for this product:
| Product range | Type | Description | Language | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
