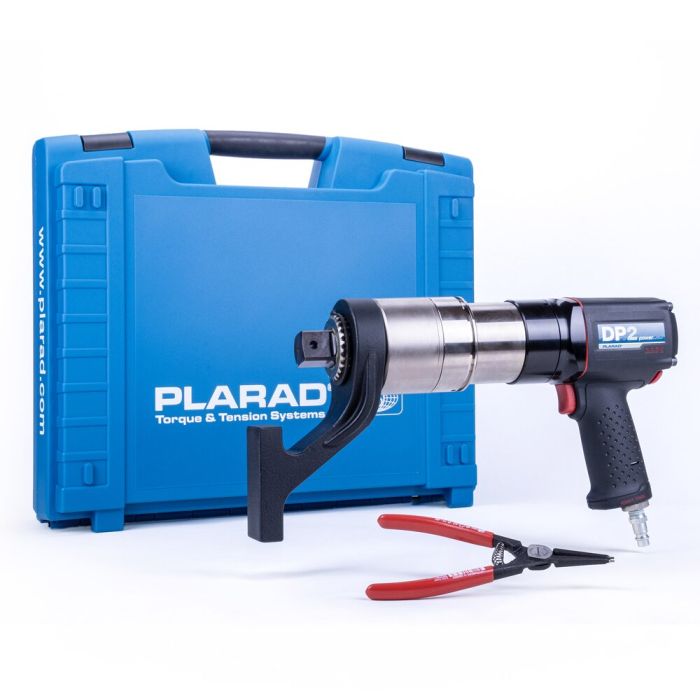

DP2power-05 SET
Pneumatic Torque Wrench, 125-500 Nm, 92-369 ft.lbs, 3/4"-Square,including Reaction Arm, Case and Assembly Kit
Article number
79000S
Availability:
PLARAD®-DP2power-05 SET
Pneumatic Torque Wrench
Accessories:
incl. customized accessories
Torque: 125 to 500 Nm
92 to 369 ft.lbs
Rotation speed: 26,700 UpM
Weight: 13 kg
Square drive: 3/4"
Pneumatic Torque Wrench
Accessories:
incl. customized accessories
Torque: 125 to 500 Nm
92 to 369 ft.lbs
Rotation speed: 26,700 UpM
Weight: 13 kg
Square drive: 3/4"
| Torque min. | 125 Nm |
|---|---|
| Torque max. | 500 Nm |
| Torque min. | 92 ft.lbs |
| Torque max. | 369 ft.lbs |
| Square | 3/4" |
| Length (L1) | 290,00 mm |
| Length (L2) | 145,00 mm |
| Length (L3) | 60,50 mm |
| Length (L4) | 26,50 mm |
| Height (H1) | 181,00 mm |
| Gear Ø (D1) | 68,50 mm |
| Number of Teeth (Z) | 26 Z |
| Square Drive Socket | not included |
| Case | including |
| Features | Less noise, less vibration and more precision than classic impact wrenches, Powerful and compact design thanks to maximum efficiency drive |
