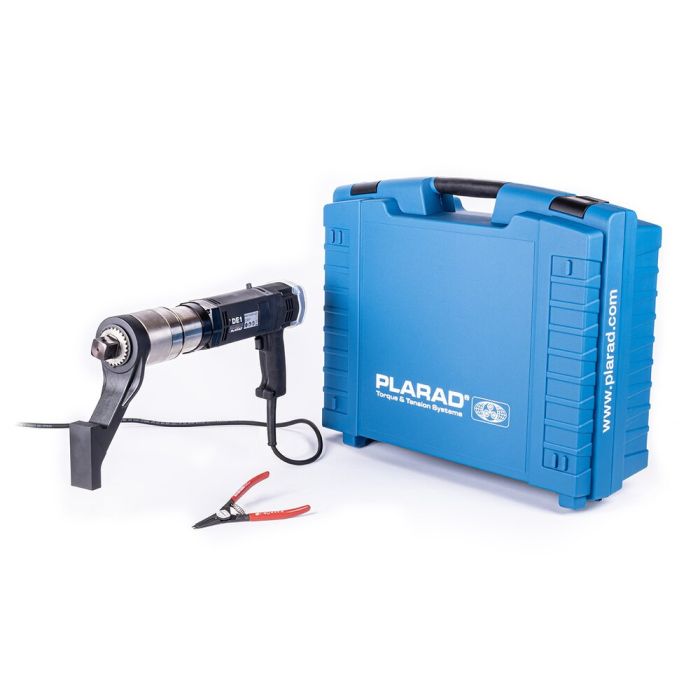

DE1power-10 SET
Electric Torque Wrench, 150-1.000 Nm, 111-738 ft.lbs, 3/4''-Square, AC230V, 50-60Hz, including Reaction Arm, Case and Assembly Kit
Article number
87101S
Availability:
PLARAD® - DE1power-10 SET
Electric torque wrench
150-1.000Nm, 3/4"-Square
AC230V, 50-60Hz,
99 torque settings
1 release setting
1 gear setting
presets
key lock
Accessories:
Customized accessories: -incl. reaction arm (No. 75460) -incl. assembly kit (No. 79679) -without sockets -incl. tool box (No. 18154)
Torque range: 150 - 1.000 Nm
111 - 738 ft.lbs
RPM: 19,60 rpm
Power rating: 1,45 kW
Voltage: AC 230 V, 50-60 Hz
Square drive: 3/4"
Weight: 0 kg
Electric torque wrench
150-1.000Nm, 3/4"-Square
AC230V, 50-60Hz,
99 torque settings
1 release setting
1 gear setting
presets
key lock
Accessories:
Customized accessories: -incl. reaction arm (No. 75460) -incl. assembly kit (No. 79679) -without sockets -incl. tool box (No. 18154)
Torque range: 150 - 1.000 Nm
111 - 738 ft.lbs
RPM: 19,60 rpm
Power rating: 1,45 kW
Voltage: AC 230 V, 50-60 Hz
Square drive: 3/4"
Weight: 0 kg
| Torque min. | 150 Nm |
|---|---|
| Torque max. | 1.000 Nm |
| Torque min. | 111 ft.lbs |
| Torque max. | 738 ft.lbs |
| Square | 3/4" |
| Mains Frequency | 56 Hz |
| Voltage | 230 V |
| Number of Teeth (Z) | 26 Z |
| Length (L1) | 425,00 mm |
| Length (L2) | 145,50 mm |
| Length (L3) | 60,50 mm |
| Height (H1) | 192,00 mm |
| Gear Ø (D1) | 68,50 mm |
| Output speed | 19,60 UpM |
| Square Drive Socket | -without |
| Case | -incl. (No. 18154) |
| Assembly-Kit | -incl. (No. 79679) |
