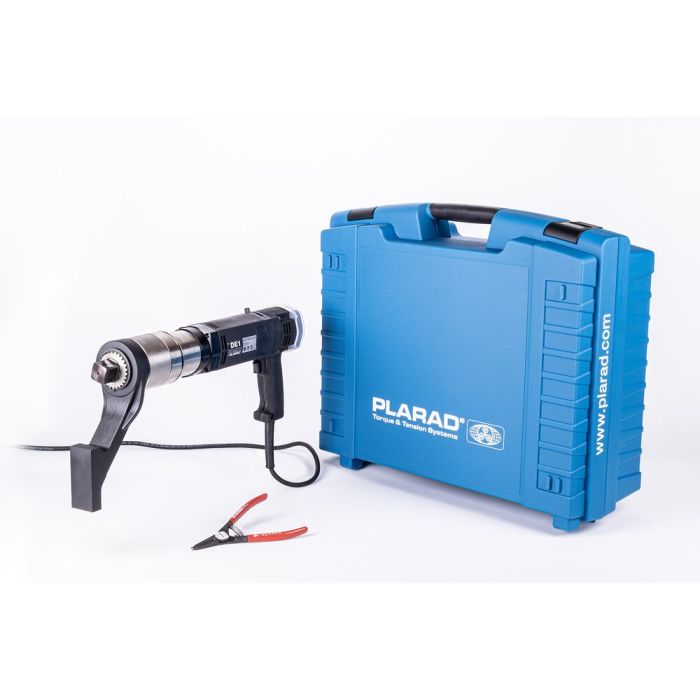

DE1docuplus-48 SET
Electric Torque Wrench, 500-4.800 Nm, 369-3.540 ft.lbs, 1.1/2''-Square, AC230V, 50-60Hz, Torque/Rotation Angle Mode, including Reaction Arm, Case and Assembly Kit
Article number
80131S
Availability:
PLARAD®-DE1docuplus48 SET
Electric Torque Wrench
incl. documentation of bolting cases via WLAN
Accessories:
incl. customized accessories
Adjustable for:
- torque
- torque angle
- torque/torque angle
- torque-angle counter
Torque: 500 to 4.800 Nm
369 to 3.540 ft.lbs
Rotation speed: 4,60 UpM
Weight: 17 kg
Motor drive: 1,45 kW
Voltage: AC 230 V, 50 Hz
Square drive: 1.1/2"
Electric Torque Wrench
incl. documentation of bolting cases via WLAN
Accessories:
incl. customized accessories
Adjustable for:
- torque
- torque angle
- torque/torque angle
- torque-angle counter
Torque: 500 to 4.800 Nm
369 to 3.540 ft.lbs
Rotation speed: 4,60 UpM
Weight: 17 kg
Motor drive: 1,45 kW
Voltage: AC 230 V, 50 Hz
Square drive: 1.1/2"
| Torque min. | 500 Nm |
|---|---|
| Torque max. | 4.800 Nm |
| Torque min. | 369 ft.lbs |
| Torque max. | 3.540 ft.lbs |
| Square | 1.1/2" |
| Mains Frequency | 50 Hz |
| Voltage | 230 V |
| Number of Teeth (Z) | 45 Z |
| Length (L1) | 497,00 mm |
| Length (L2) | 168,00 mm |
| Length (L3) | 83,50 mm |
| Height (H1) | 192,00 mm |
| Gear Ø (D1) | 86,00 mm |
| Output speed G1 | 4,60 UpM |
| Case | including |
