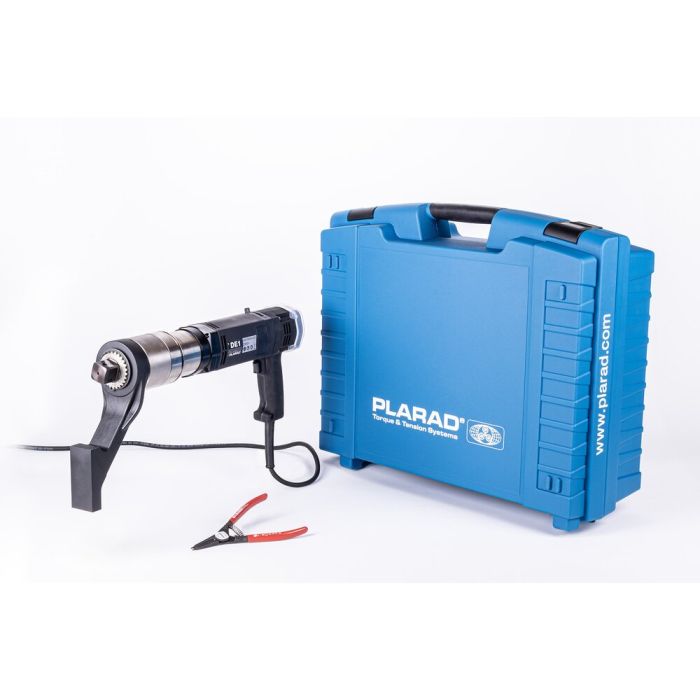

DE1docuplus-36 SET
Electric Torque Wrench, 500-3.600 Nm, 369-2.655 ft.lbs, 1''-Square, AC230V, 50-60Hz, Torque/Rotation Angle Mode, including Reaction Arm, Case and Assembly Kit
Article number
80129S
Availability:
PLARAD®-DE1docuplus36 SET
Electric Torque Wrench
incl. documentation of bolting cases via WLAN
Accessories:
incl. customized accessories
Adjustable for:
- torque
- torque angle
- torque/torque angle
- torque-angle counter
Torque: 500 to 3.600 Nm
369 to 2.655 ft.lbs
Rotation speed: 5,20 UpM
Weight: 15,08 kg
Motor drive: 1,45 kW
Voltage: AC 230 V, 50 Hz
Square drive: 1"
Electric Torque Wrench
incl. documentation of bolting cases via WLAN
Accessories:
incl. customized accessories
Adjustable for:
- torque
- torque angle
- torque/torque angle
- torque-angle counter
Torque: 500 to 3.600 Nm
369 to 2.655 ft.lbs
Rotation speed: 5,20 UpM
Weight: 15,08 kg
Motor drive: 1,45 kW
Voltage: AC 230 V, 50 Hz
Square drive: 1"
| Torque min. | 500 Nm |
|---|---|
| Torque max. | 3.600 Nm |
| Torque min. | 369 ft.lbs |
| Torque max. | 2.655 ft.lbs |
| Square | 1" |
| Mains Frequency | 50 Hz |
| Voltage | 230 V |
| Number of Teeth (Z) | 26 Z |
| Length (L1) | 465,00 mm |
| Length (L2) | 140,00 mm |
| Length (L3) | 61,50 mm |
| Height (H1) | 192,00 mm |
| Gear Ø (D1) | 80,00 mm |
| Output speed G1 | 5,20 UpM |
| Case | including |
Here you can find all relevant downloads for this product:
| Product range | Type | Description | Language | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Accessory parts for this product:
