DA3power-30 SET
Availability:

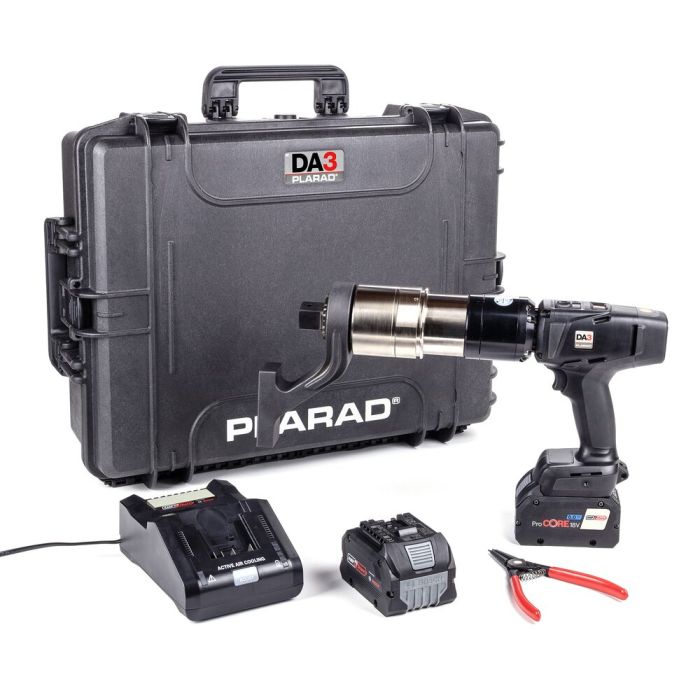

PLARAD® - DA3power-30 SET
Battery torque wrench
330-3.000Nm, 1"-Square
AC230V, 50-60Hz
“power” software (basic package)
60 torque settings
4-speed gearbox
Automatic release mode detection
Active battery capacity monitoring
OTA software updates via wireless interface (Over-The-Air)
Automatic load release
Actuator with safety function
Fully automatic locking
Rotation direction detection
Intuitive operation
Adjustment of fastening parameters directly on the device
Option: “docu” software
“power” basic package
Fastening case documentation
Option: “control” software
“power” basic package
“docu” update
Rotation angle function
Torque-rotation angle function
Accessories:
Torque range: 330 - 3.000 Nm
243 - 2.213 ft.lbs
Rotation speed: 2,3 UpM to 20,9 UpM
Square drive: 1"
Weight: 0 kg
| Torque min. | 330 Nm |
|---|---|
| Torque max. | 3.000 Nm |
| Torque min. | 243 ft.lbs |
| Torque max. | 2.213 ft.lbs |
| Square | 1" |
| Number of Teeth (Z) | 26 Z |
| Length (L2) | 184,50 mm |
| Length (L3) | 61,50 mm |
| Length (L4) | 27,50 mm |
| Height (H1) | 273,00 mm |
| Gear Ø (D1) | 80,00 mm |
| Output speed G1 | 2,3 UpM |
| Output speed G2 | 4,6 UpM |
| Output speed G3 | 10,3 UpM |
| Output speed G4 | 20,9 UpM |
| Square Drive Socket | -without |
| Case | -incl. (No. 88050) |
| Battery Charger | -incl. AC230V, 50-60Hz |
| Battery Pack | -incl. 2 x 18 V 5,2 Ah |
| Assembly-Kit | -incl. (No. 79679) |
