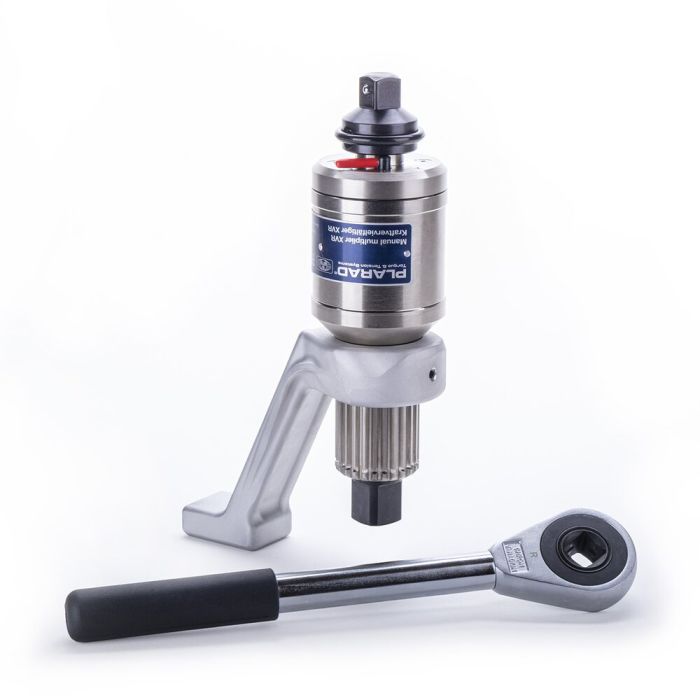

XVR-40
Manual Torque Multiplier, 560-4.000 Nm, 413-2.950 ft.lbs, with reverse lock
Article number
47775
Availability:
PLARAD® - XVR 40
Manual torque wrench with reverse control
max. capacity: 4.000 Nm
Output drive: 1 1/2"
Input drive: 3/4"
Length: 238 mm
Gear ratio: 11 : 1
Weight: 11,50 kg
Accuracy ±: 5 %
Manual torque wrench with reverse control
max. capacity: 4.000 Nm
Output drive: 1 1/2"
Input drive: 3/4"
Length: 238 mm
Gear ratio: 11 : 1
Weight: 11,50 kg
Accuracy ±: 5 %
| Gear Ø (D1) | 95,0 mm |
|---|---|
| Torque min. | 560 Nm |
| Torque max. | 4.000 Nm |
| Torque min. | 413 ft.lbs |
| Torque max. | 2.950 ft.lbs |
| Square | 1.1/2" |
| Height (H1) | 238,0 mm |
| Gear Ø (D1) | 10,40 mm |
| Reverse Lock | ja |
| Number of Teeth (Z) | 32 |
| Features | Power ranges from 200 to 10,000 Nm, small dimensions, low weight, low maintenance and durable, suitable for all industrial requirements, replaces temporary solutions such as pipe extensions and impact spanners |
