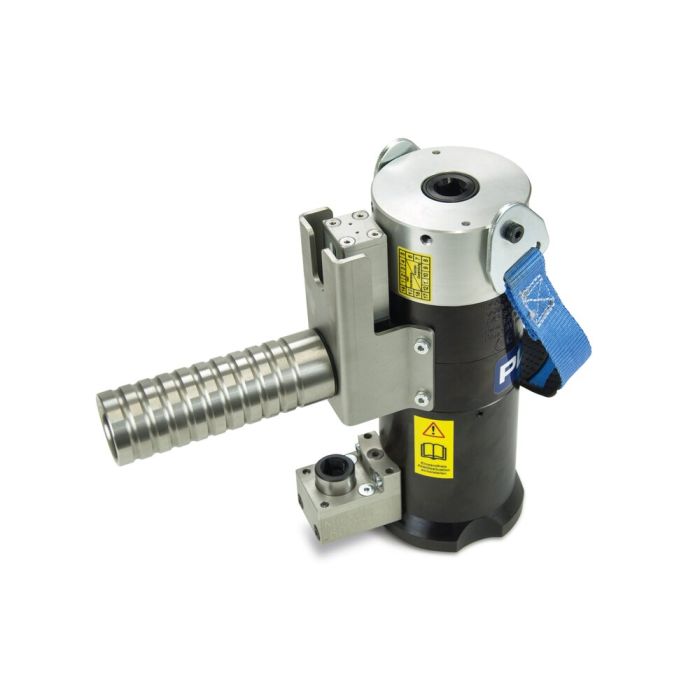

PSD-33 581
Hydraulic Tensioner, Two stage, M 33, maximum pressure 1.500 bar, 21.756 psi, maximum load 581 KN, AF 50
Article number
52825
Availability:
PLARAD® - PSD-33 581
Hydraulic Tensioner
1.500bar, 581kN
M33x3,5, AF 50
Features:
double-stage
Incl. spring reset
incl. gear drive
without cycle counter
Thread: M33x3,5
Pivot sleeve AF: 50 mm
Tensioning force max: 581 kN / 132.357 lbf
Operating pressure max: 1.500 bar / 21.756 psi
No. of cycles max: 4.500
Tensioner Ø (D1): 79,00
Weight: 7,4 kg
Hydraulic Tensioner
1.500bar, 581kN
M33x3,5, AF 50
Features:
double-stage
Incl. spring reset
incl. gear drive
without cycle counter
Thread: M33x3,5
Pivot sleeve AF: 50 mm
Tensioning force max: 581 kN / 132.357 lbf
Operating pressure max: 1.500 bar / 21.756 psi
No. of cycles max: 4.500
Tensioner Ø (D1): 79,00
Weight: 7,4 kg
| Operating Pressure max. | 1.500 bar |
|---|---|
| Operating Pressure max. | 21.756 psi |
| TensioningForce max. | 581 kN |
| TensioningForce max. | 132.357 lbf |
| Rotary Sleeve AF (M) | 50 mm |
| D1 Ø Spannzylinder | 79,00 mm |
| Stages | 2 |
| Length (L1) | 237,00 mm |
| Height (H1) | 215,00 mm |
| Height (H2) | 84,00 mm |
| Height (H3) | 34,00 mm |
| Diameter (D1) | 79,00 mm |
| Diameter (D2) | 33 mm |
