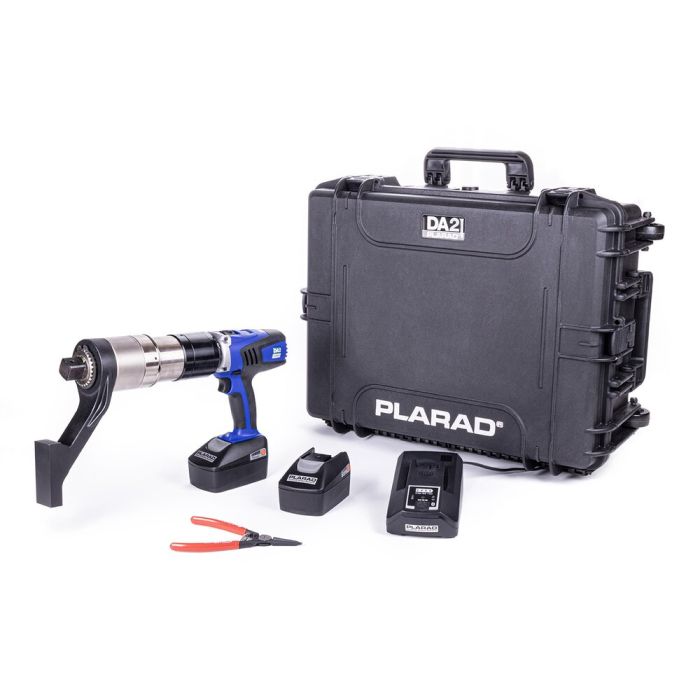

DA2power-36 SET
Battery Torque Wrench, 380-3.600 Nm, 280-2.655 ft.lbs, 1''-Square, including Reaction Arm, Case, 2 x Battery Pack, Battery Charger AC230V, 50-60Hz, Assembly Kit
Article number
86110S
Availability:
PLARAD®- DA2power - 36 - Set
Battery Nutrunner
incl. recharger 220-240 V
(50/60 Hz), charging voltage 18 V
incl. 2 pieces lithium ion accumulator 5,2 Ah
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
incl. hard-top transport box
with custom-fitted inlay and trolley function
incl. reaction arm
Torque 380 to 3.600 Nm
Rotation speed: 1,8 rpm to 15,3 rpm
Weight: 6 kgs
without reaction arm
Square drive: 1“
Battery Nutrunner
incl. recharger 220-240 V
(50/60 Hz), charging voltage 18 V
incl. 2 pieces lithium ion accumulator 5,2 Ah
60 torque regulating steps
and 4 additional loosening steps
capacity control for accumulator
automatic release
actuated by safety function
fully automatic locking device
incl. hard-top transport box
with custom-fitted inlay and trolley function
incl. reaction arm
Torque 380 to 3.600 Nm
Rotation speed: 1,8 rpm to 15,3 rpm
Weight: 6 kgs
without reaction arm
Square drive: 1“
| Torque min. | 380 Nm | |
|---|---|---|
| Torque max. | 3.600 Nm | |
| Torque min. | 280 ft.lbs | |
| Torque max. | 2.655 ft.lbs | |
| Square | 1" | |
| Number of Teeth (Z) | 26 Z | |
| Length (L1) | 405,00 mm | |
| Length (L2) | 184,50 mm | |
| Length (L3) | 61,50 mm | |
| Length (L4) | 27,50 mm | |
| Height (H1) | 253,00 mm | |
| Output speed G1 | 1,8 UpM | |
| Output speed G2 | 3,3 UpM | |
| Output speed G3 | 7,8 UpM | |
| Output speed G4 | 15,3 UpM | |
| Set Contents | ||
| Square Drive Socket | not included | |
| Reaction Arm | inklusive (No. 71707) | |
| Case | included (No. 71418) | |
| Battery Charger | AC230V, 50-60 Hz (No. 80450) | |
| Battery Pack | 2 x 18 V 5,2 Ah (No. 80342) | |
| Assembly-Kit | included (No. 79679) | |
| Features | 60 torque regulating steps and 4 additional loosening steps, capacity control for accumulator, automatic release, actuated by safety function, fully automatic locking device | |
